LD60

Description

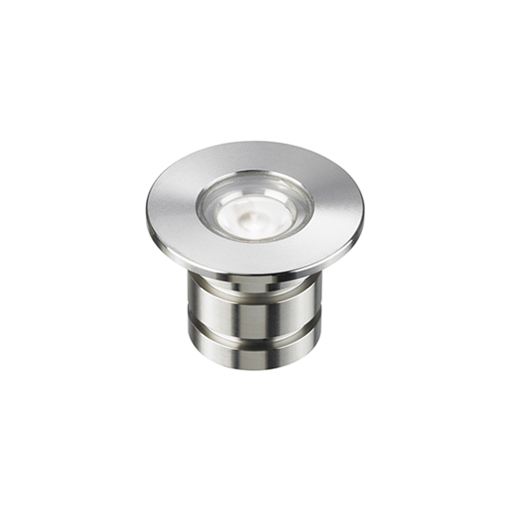

With a slightly larger bezel than the LD41, the LD60 completely covers the first fix sleeve. This is a robust, versatile fitting with a 5mm thick glass and no visible fixings, available in a choice of beam angles and colour temperatures.

Applications

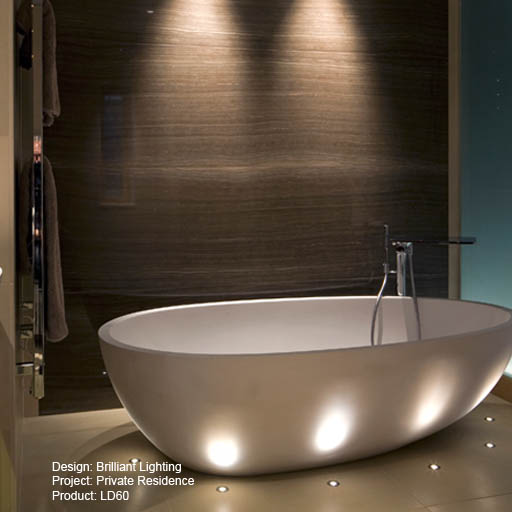

Bathroom and Mirror, External, Recessed Uplighting, Steps, Yacht Lighting, RLE - Replaceable Light Engines, (50lm-200lm) Miniature range

Fixing

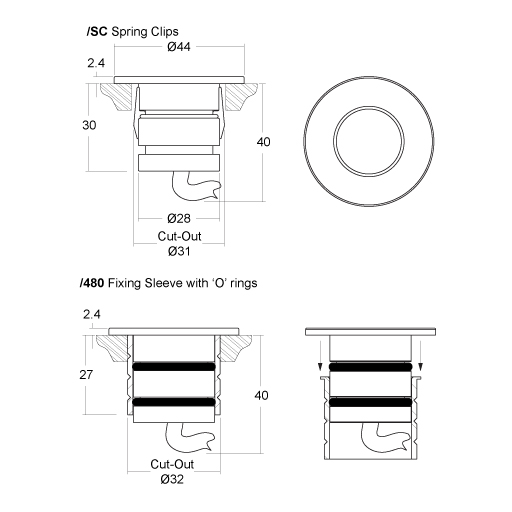

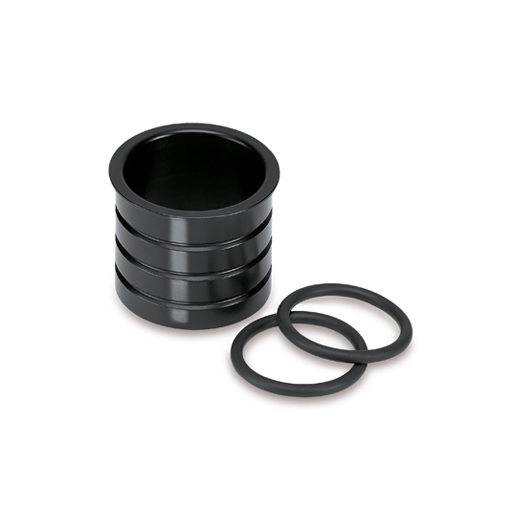

Spring clips /SC, /480 fixing sleeve and O rings and /480GT Ground tube

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD60-C1-350) , 1.7W @ 500mA (LD60-C1-500)

Materials

Machined 316 Stainless Steel bezel & body, 5mm borosilicate glass

IP Rating

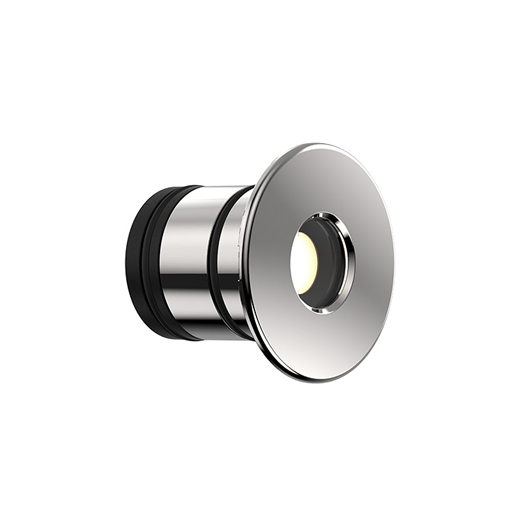

IP68 - Not for permanent submersion (use LD242A)

Downloads

LD60
LD60C1-2 Datasheet
LD60
Design Pack
LD60
Photometric LDT
Files
LD60
Install Instructions
LD60
Drivers
