LD61

Description

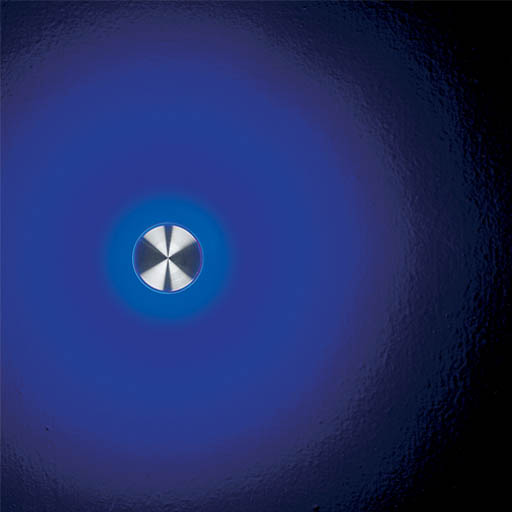

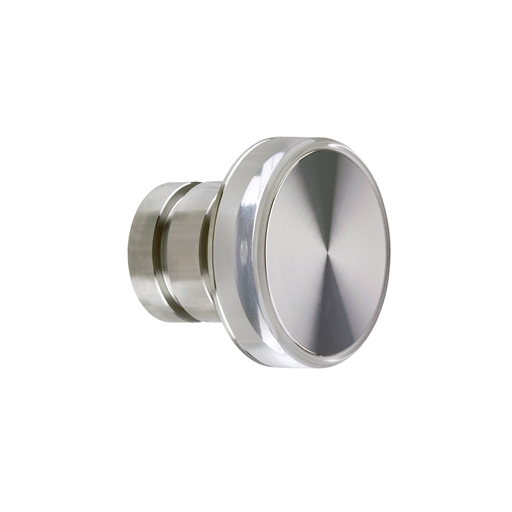

The LD61 is a miniature wall mounted LED using a specially designed reflector to wash the surface around it with a 360° illumination. It can be used on interior or exterior walls to create interesting effects as well as lighting up steps and staircases, and the colours look fantastic! With no visible fixings it can be secured by spring clips or O-rings and a first fix sleeve.

Applications

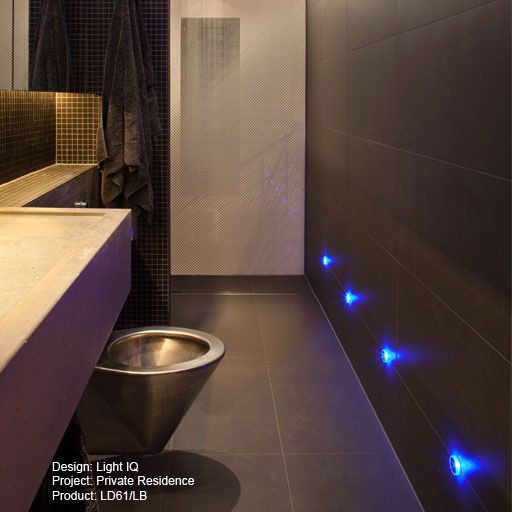

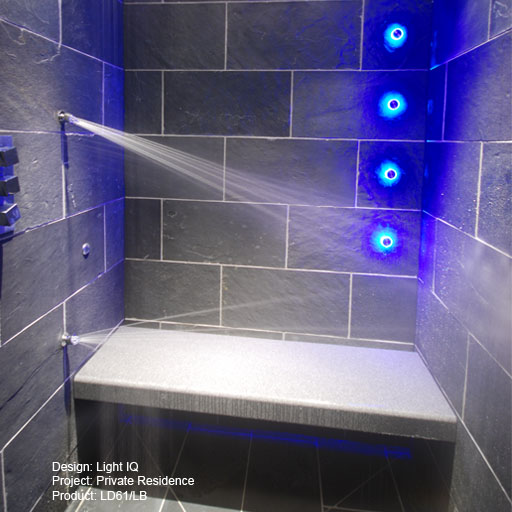

Bathroom and Mirror, External, Steps, Wall Wash, Yacht Lighting, Pathway

Fixing

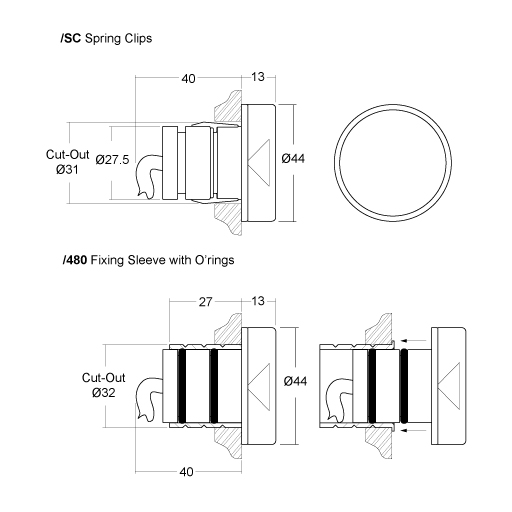

Spring clips /SC, O-rings and first fix /480 sleeve

Lamp Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD61-C1-350) or 1.7W @ 500mA (LD61-C1-500)

Materials

Machined 316 Stainless steel 316 and acrylic

IP Rating

IP67

Downloads

LD61
LD61LD62C1 Datasheet
LD61
Design Pack
LD61
Drivers
