LD62

Description

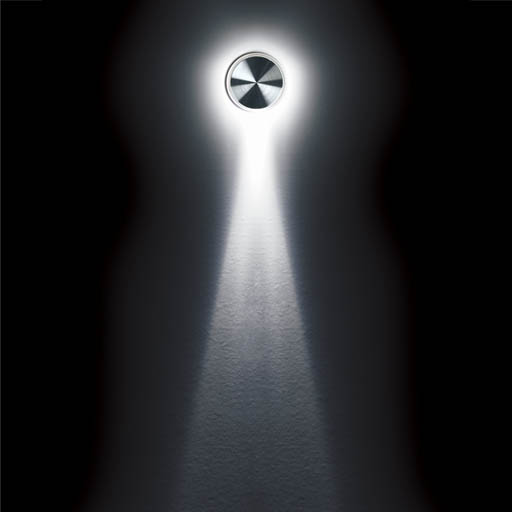

The LD62 is a miniature wall mounted LED using a specially designed reflector to wash the surface around it with a 360° illumination and 25° beam. It can be used on interior or exterior walls to create interesting effects as well as lighting up steps and staircases, and the colours look fantastic! With no visible fixings it can be secured by spring clips or O-rings and a first fix sleeve.

Applications

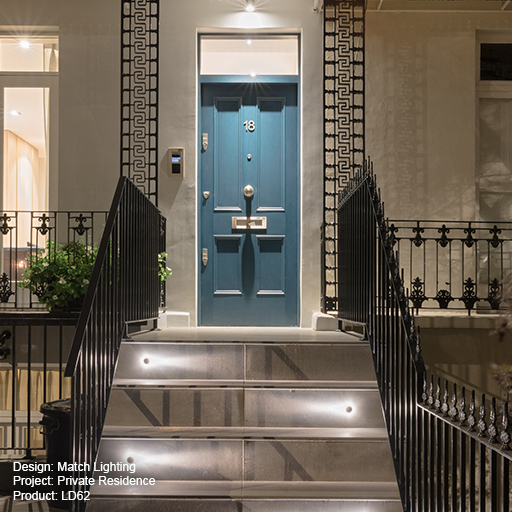

Bathroom and Mirror, External, Steps, Yacht Lighting, Pathway, RLE - Replaceable Light Engines, (50lm-200lm) Miniature range

Fixing

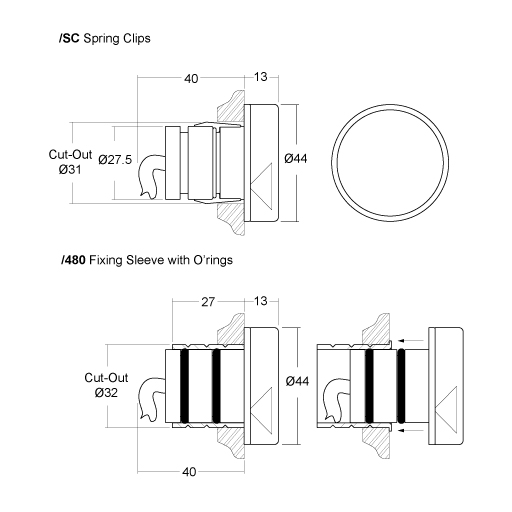

Spring clips /SC, O-rings and first fix /480 sleeve

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD62-C1-350), 1.7W @ 500mA (LD62-C1-500)

Materials

316 Stainless Steel, Acrylic

IP Rating

IP67

Downloads

LD62
LD61LD62C1 Datasheet
LD62
Design Pack
LD62
Install Instructions
LD62
Drivers
