Colour-Matched. Precision-Cut. Quality-Assured. Built to Blend. Install-Ready.
Trusted by designers for precision, consistency, and total system integration. Our updated and extended Linear range brings that same expertise to flexible and rigid luminaires, giving you the freedom to create clean, continuous lines of light, perfectly matched in colour, quality, and performance across every application.

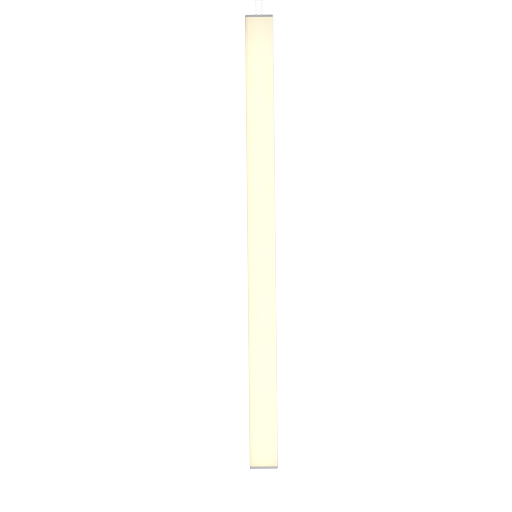

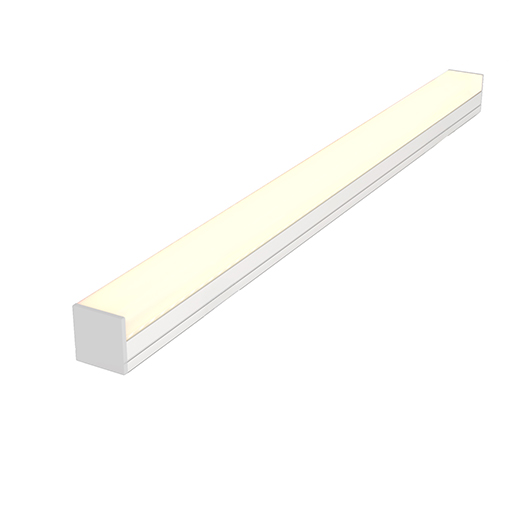

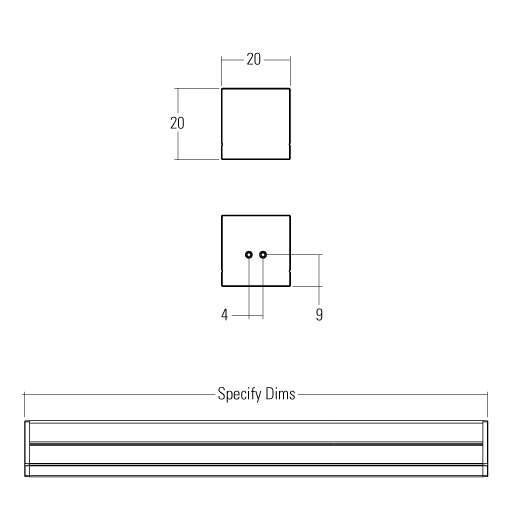

The LR20 is a wide-output rigid linear profile designed to match the LF20D, delivering powerful, consistent lines of light with exacting colour uniformity and a refined architectural aesthetic.
Built for uniformity, reliability, and visual control, the LR20 integrates seamlessly with its flexible counterpart to ensure continuity across every detail of the design.
Engineered, cut, and tested in-house, it provides up to 5m of continuous light, precision-cut to 1mm accuracy and supplied as IP20 for interior architectural applications.
Key Features
- Colour-matched to the full LightGraphix range for uniform illumination across all luminaire types
- 24 V DC system allowing long lengths from a single driver
- Colour-matched LEDs within 2-step MacAdam ellipse
- Continuous lengths up to 5m; 1mm cut accuracy
- Wide CCT range from 2200K - 6000K
- IP20 as standard
- Matching flexible profile: LF20D
- Range of mounting and cable exit options
- Dimming: 0–10 V, DALI, Casambi, DMX, Mains
- Cut, finished, and tested in the UK
Cove Lighting, Display and Shelf, Linear, Surface Mounted

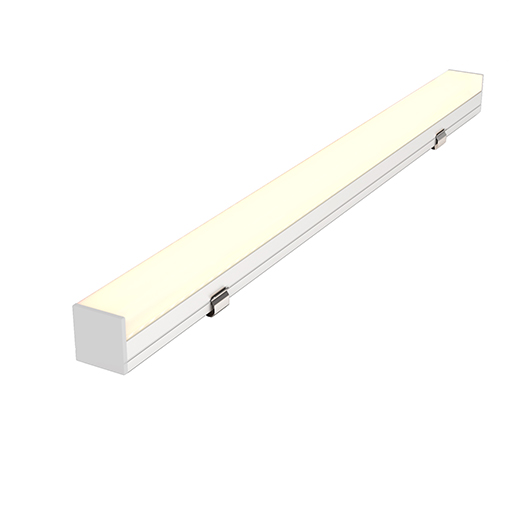

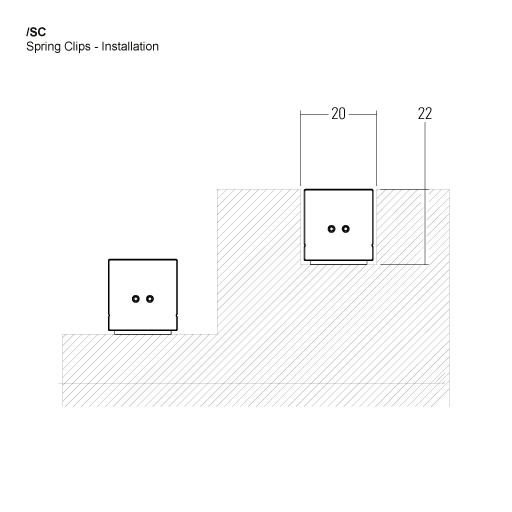

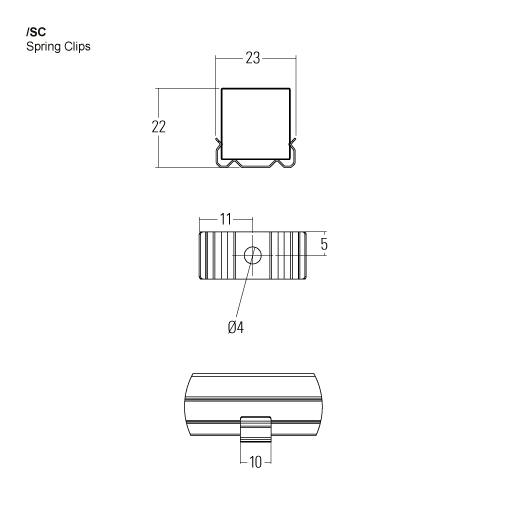

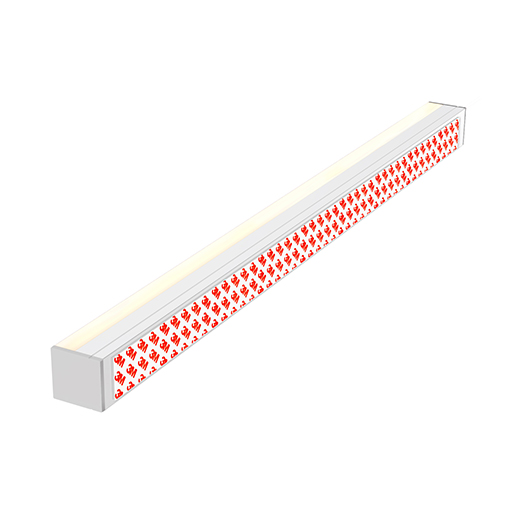

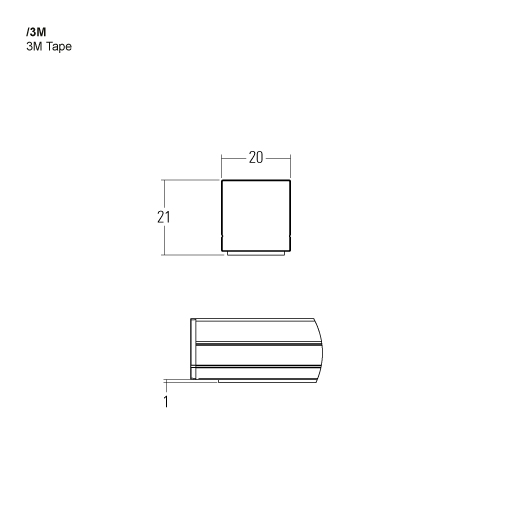

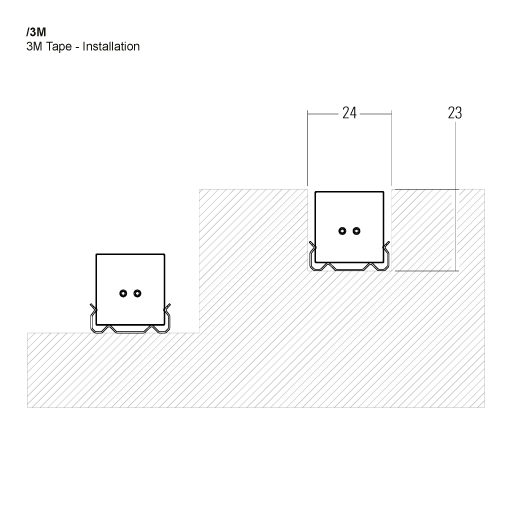

/SC Spring Clips, /3M 3M adhesive tape
LT500 - 24V 3W/m, LT900 - 24V 6W/m, LT1400 - 24V 9W/m, LT2000 24V 13W/m
Aluminium
IP20
