LD34MI

Description

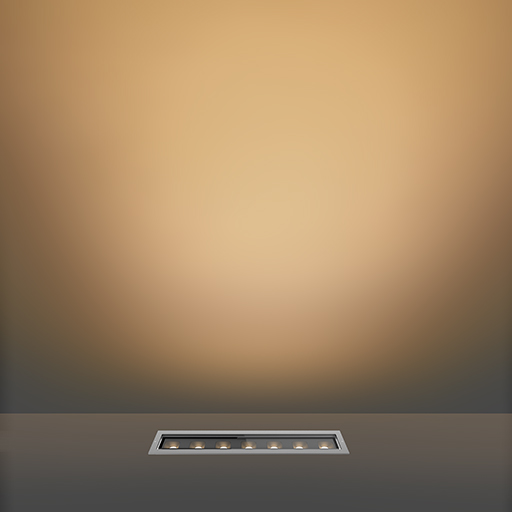

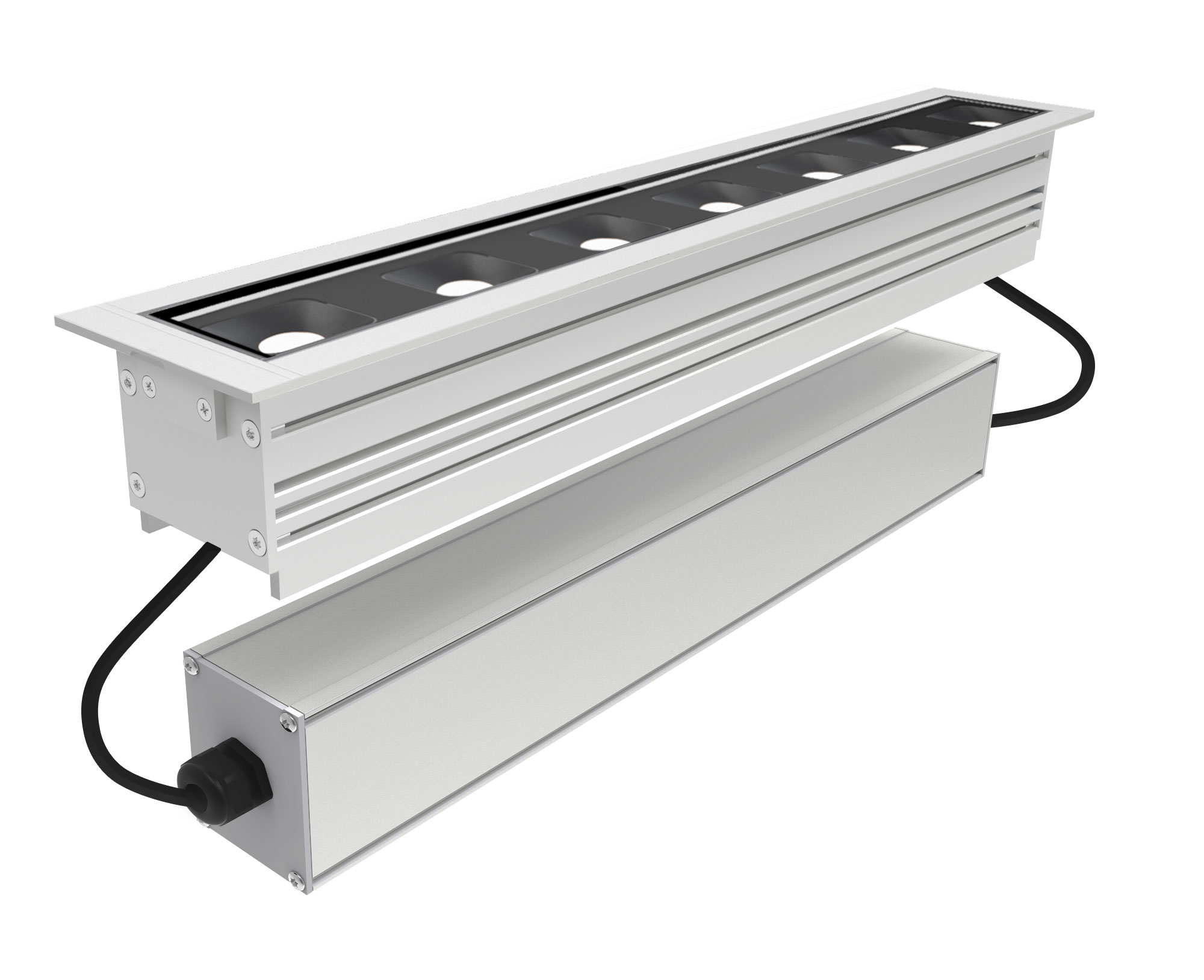

The LD34MI is a low glare, shallow recessed, in-ground linear wall grazer. With the addition of a plug and play mains-in system, the product can be installed quickly and easily with no requirement for remote driver locations.

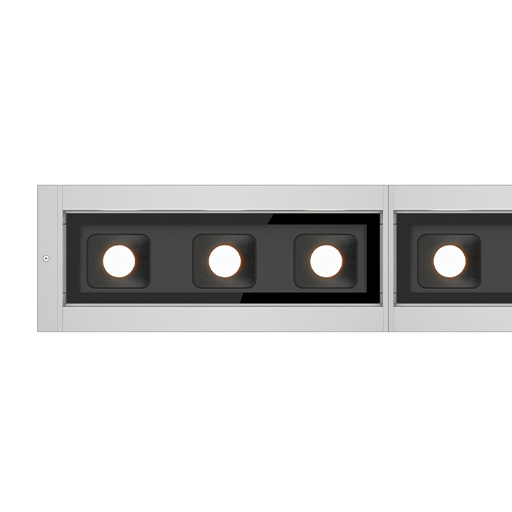

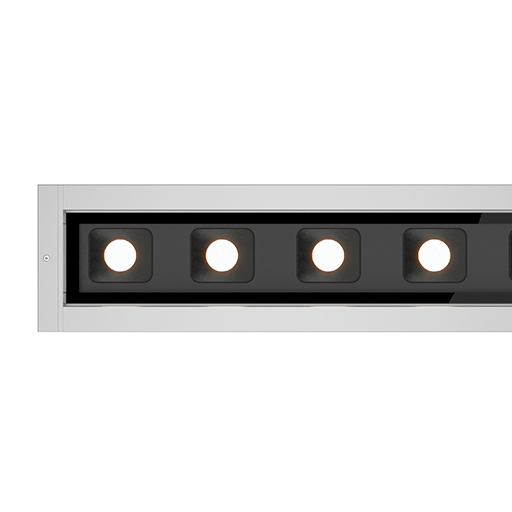

The luminaire features a fixed 2.5° tilt, integral glare control options, as well as individual cowls over each LED to ensure low glare from the viewer’s perspective. Multiple colour temperatures and beam angles are available as well as accessories including an optional frosted diffusion filter, to illuminate even the lowest parts of the wall. A variety of cable lengths and types are available to suit almost any installation requirements. With 3 set lengths and a compact design, this high-power solution is ideal for harsh environments ensuring long lasting reliability, excellent thermal and light output performance.

Key features:

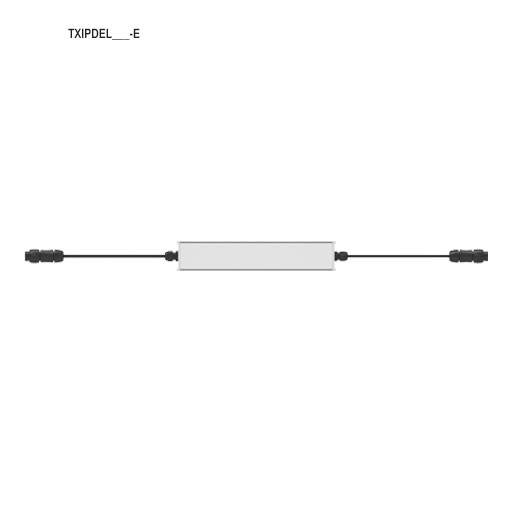

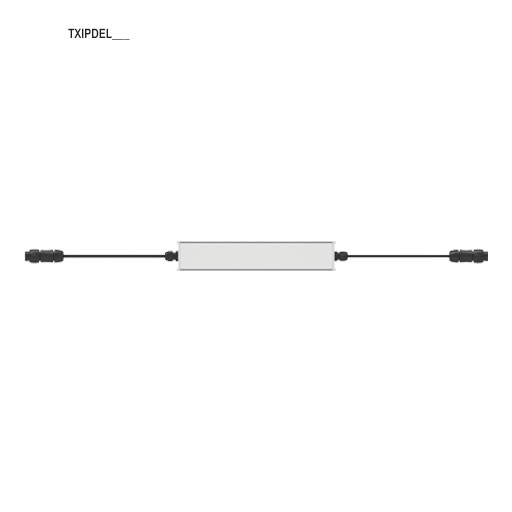

  • Plug and play mains-in system with pre-wired IP67, 3-pole or 5-pole connectors for switched and dimmable applications, delivering up to 3263lm/m

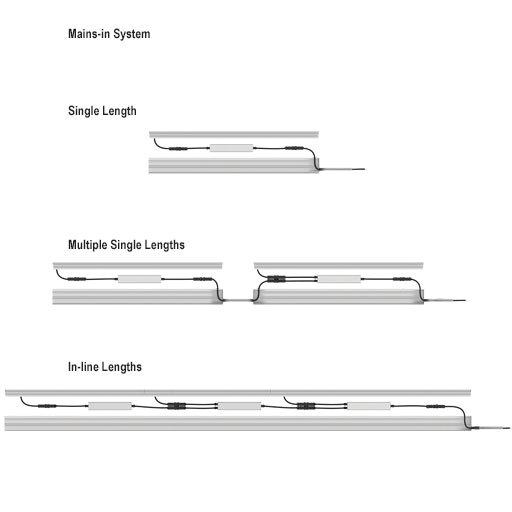

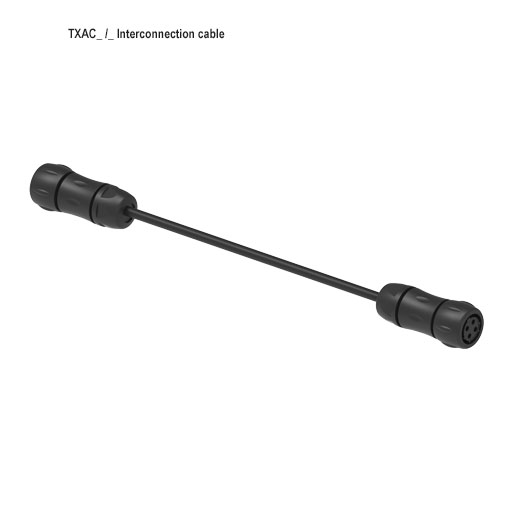

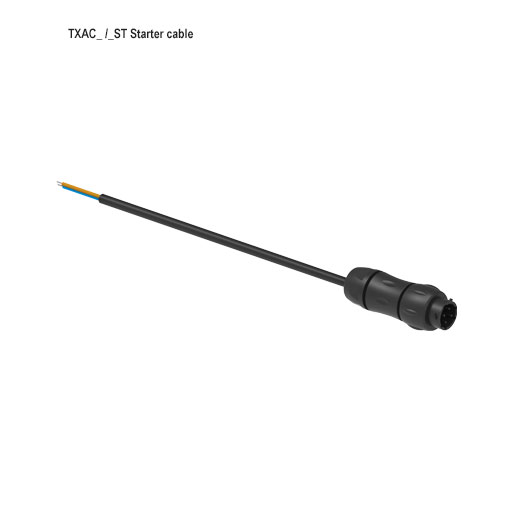

  • Single mains cable feeds a full or multiple runs (when used with interconnection cables)
  • Available lengths include 600mm, 900mm and 1200mm
  • 50mm spacing maintained across in-line lengths, ensuring no dark spots

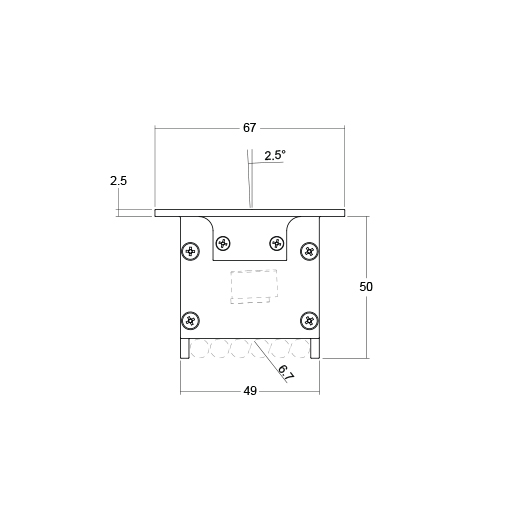

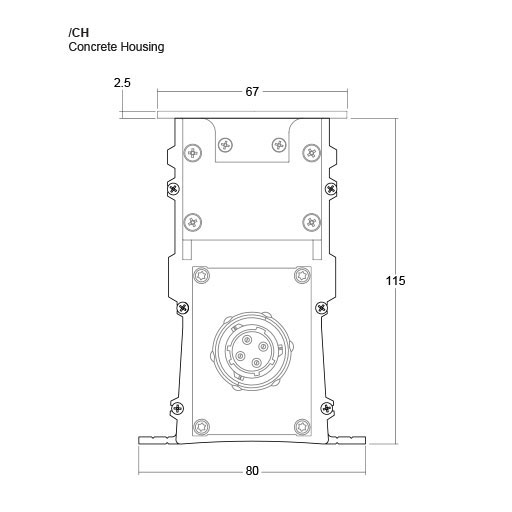

  • Compact design with only a 115mm recess depth including concrete housing

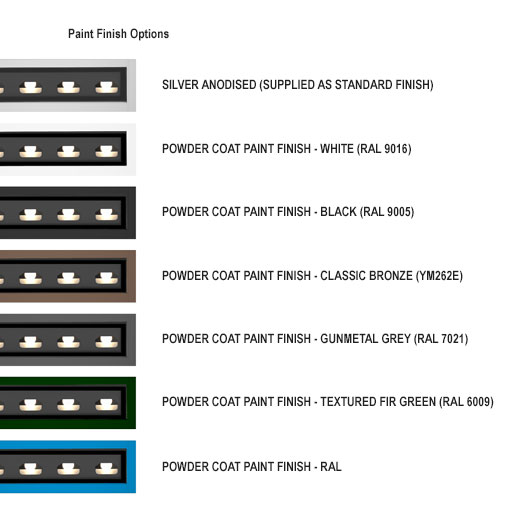

  • Manufactured from aluminium and anodised to a thickness of 25 microns. Available in Silver, Powder Coat; Black (RAL 9005), White (RAL 9016), Classic Bronze (YM262E), Gunmetal Grey (RAL 7021), Textured Fir Green (RAL 6009) and RAL colours.
  • LED fixed at a 2.5° tilt with a wide choice of beam angles and superb wall grazing capabilities using the 15° x 60° extra oval beam
  • Range of glare control accessories to ensure low glare from all directions
  • Optional frosted diffusion filter to illuminate lower parts of the wall

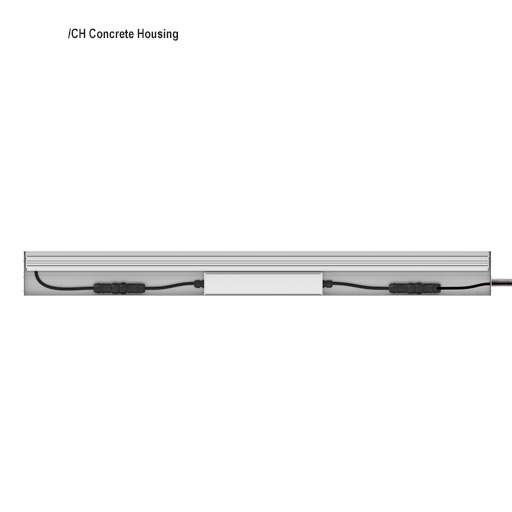

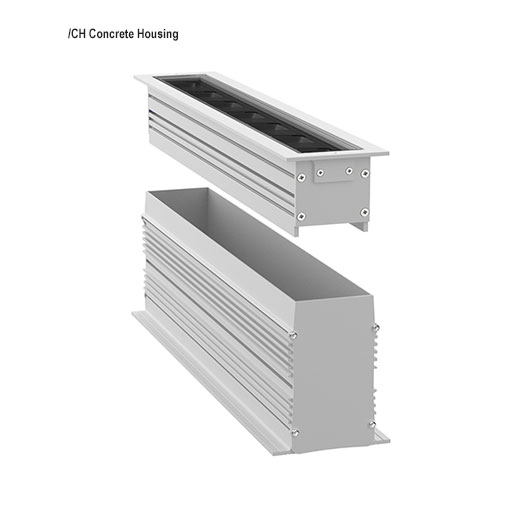

  • First fix concrete housing with multiple cable options available

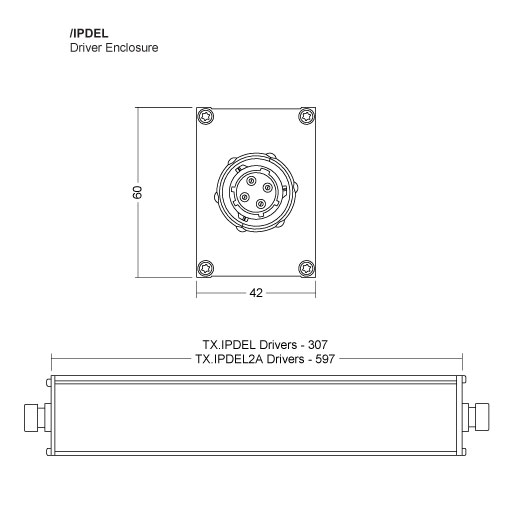

  • Switched, 0-10V and DALI dimmable drivers available

Applications

External, Linear, Recessed Uplighting, Wall Wash

Fixing

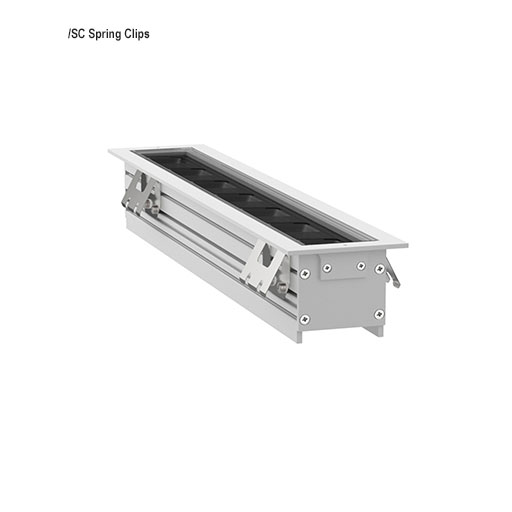

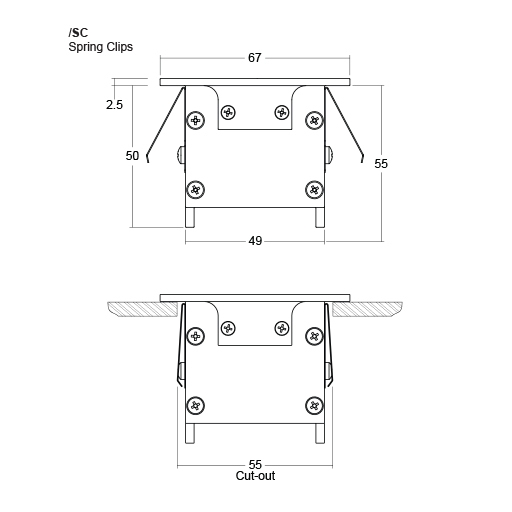

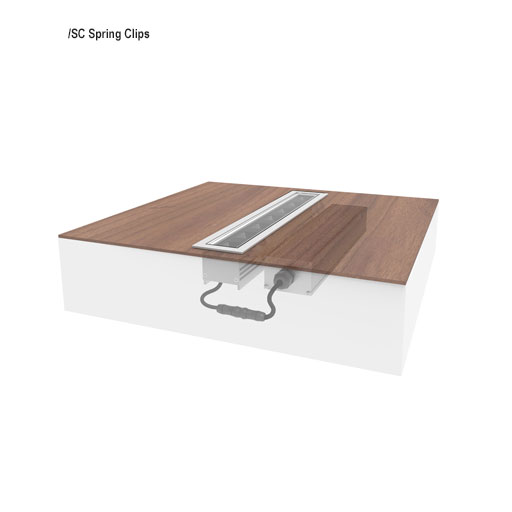

Spring Clips, Concrete Housing

LED Information

NICHIA Linear C1 LED Engine: 1.7W per LED @ 500mA (LD34MI-C1-500), 2.4W per LED @ 700mA (LD34MI-C1-700)

Materials

Anodised aluminium

IP Rating

IP67

Accessories

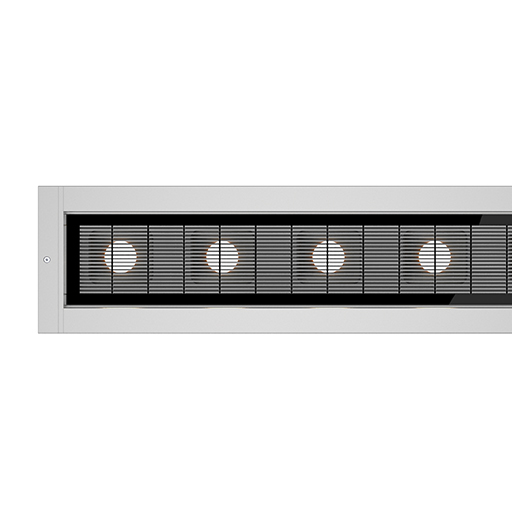

/FD Frost, /GS40 40% Glare Shield, /GS50 50% Glare Shield, /GL Anti Glare Louvre

Downloads

LD34MI
LD34MIC1-4 Datasheet
LD34MI
Design Pack
LD34MI
Photometric LDT
Files
