LD43DRG

Description

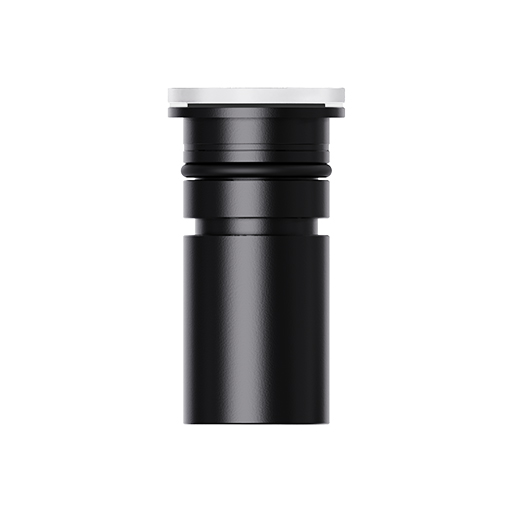

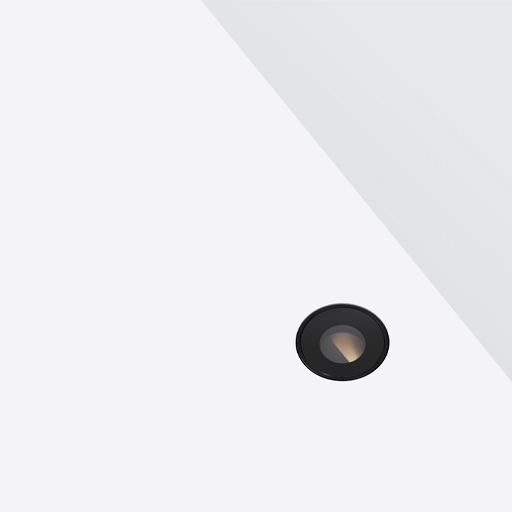

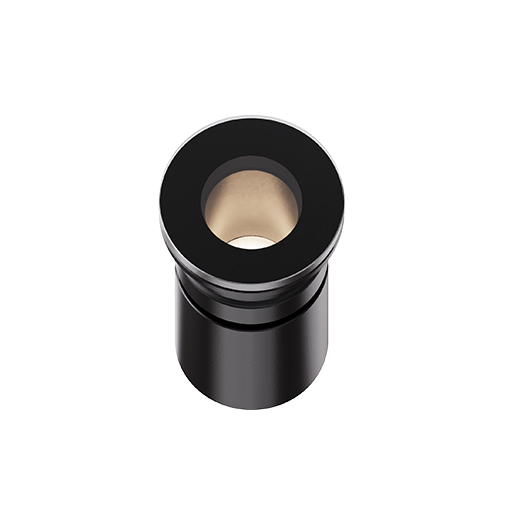

The new Trimless family is an exciting new addition to the LightGraphix product portfolio, offering lighting designers a modern aesthetic for their projects. They have been made possible by the modularisation of some of our existing fittings. The LD43DRG is a miniature, ultra-deep recessed, LED inground uplight which can also be used as a downlight. The LED and optics are recessed at 33mm into the body for super low glare, which can be further reduced with an optional glare shield. Due to the miniature aperture of the LD43DRG, it is available in a narrow 12° beam only, offering defined edges, ideal for lighting doorways or narrow corridors. Featuring a high-quality, seamless glass top, the LD43DRG blends perfectly into its surroundings.

Applications

Bathroom and Mirror, Downlights, External, Recessed Uplighting, Wall Wash, Yacht Lighting, RLE - Replaceable Light Engines, (50lm-200lm) Miniature range, Trimless

Fixing

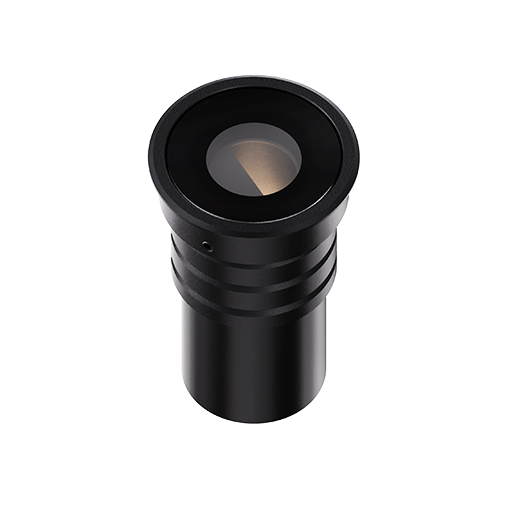

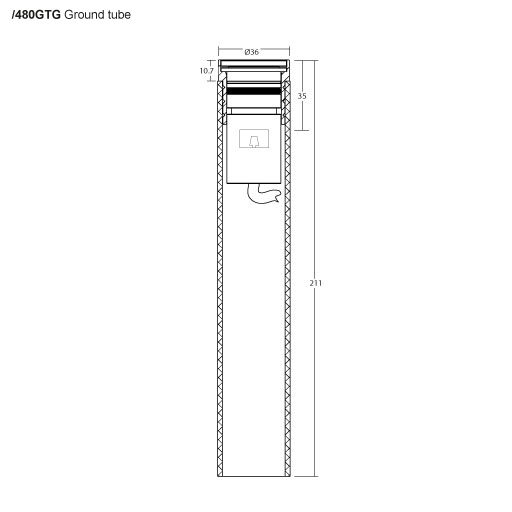

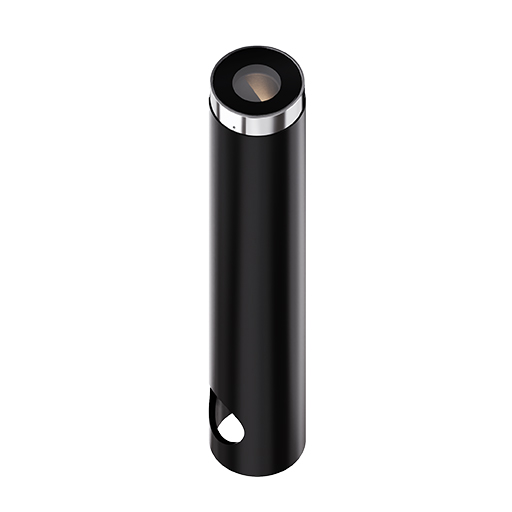

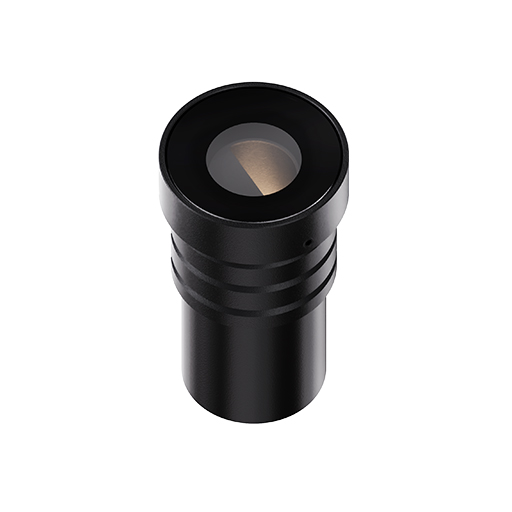

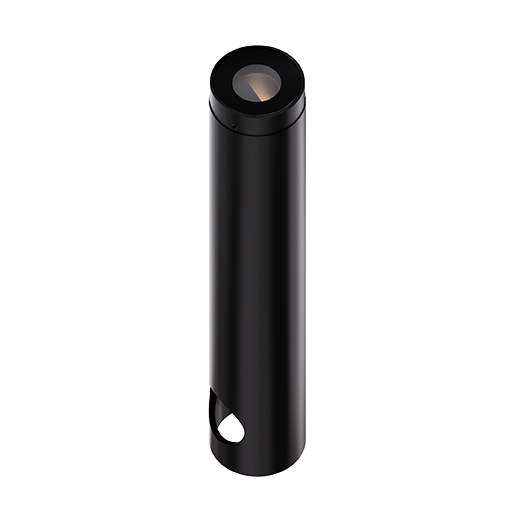

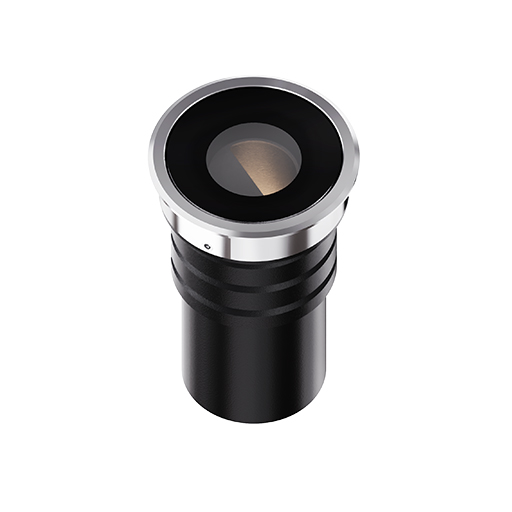

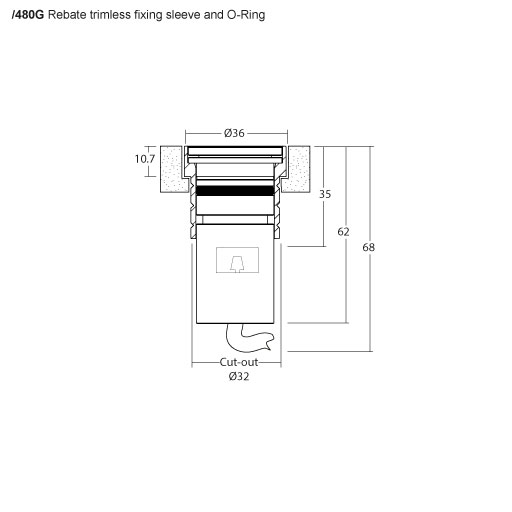

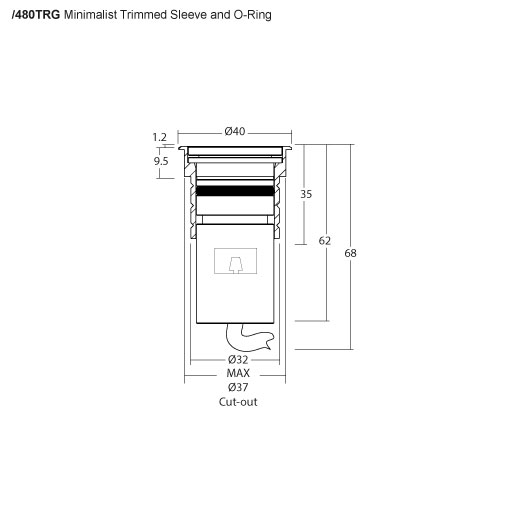

Rebate trimless fixing sleeve and O-Ring (480G), Minimalist Trimmed Sleeve and O-Ring (/480TRG), Plaster in Sleeve and O-Ring (/480PSG), Ground tube (/480GT)

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD43DR-C1-350),1.7W @ 500mA (LD43DR-C1-500), 2.4W @ 700mA (LD43DR-C1-700)

Materials

Anodised aluminium body, glass bezel

IP Rating

IP66

Accessories

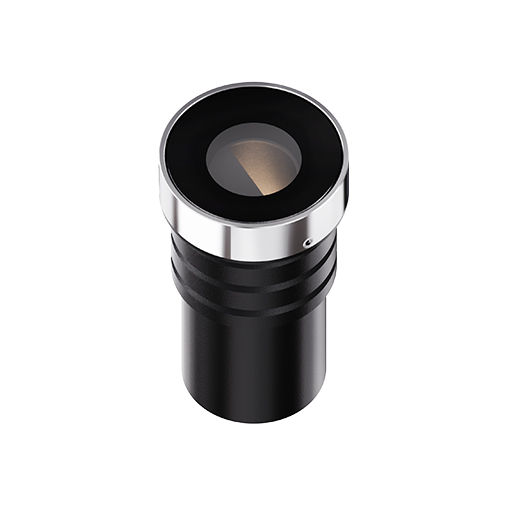

Optional Glare shield (/GS)

Downloads

LD43DRG
LD43DRGC1-2 Datasheet
LD43DRG
Design Pack
LD43DRG
Photometric LDT
Files
LD43DRG
Drivers
