LD63

Description

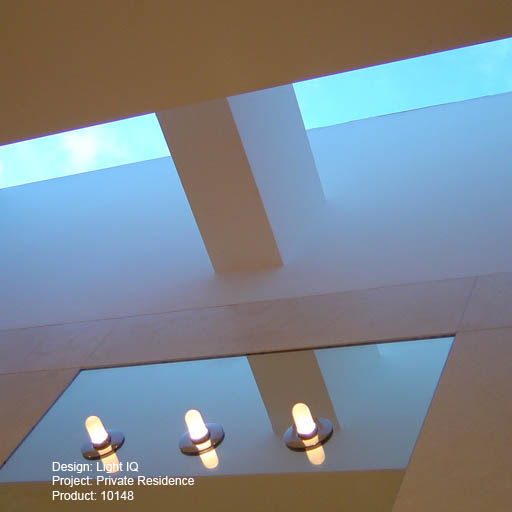

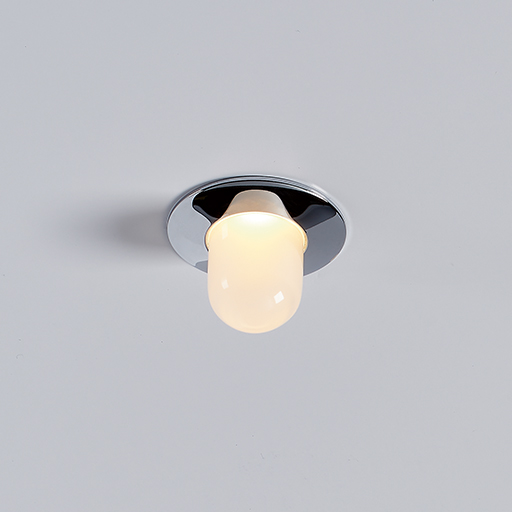

The LD63 mirror or decorative light fitting is the LED replacement for the 10148 halogen light. It provides a high-power LED output and good colour rendering with 93 CRI. This shallow, recessed fitting has no projected heat and its two diffused surfaces create an even glow, making it ideal for fascia illumination. Rated IP65 as standard, the LD63 is designed for quick and simple installation and features spring clips for hidden fixing.

Applications

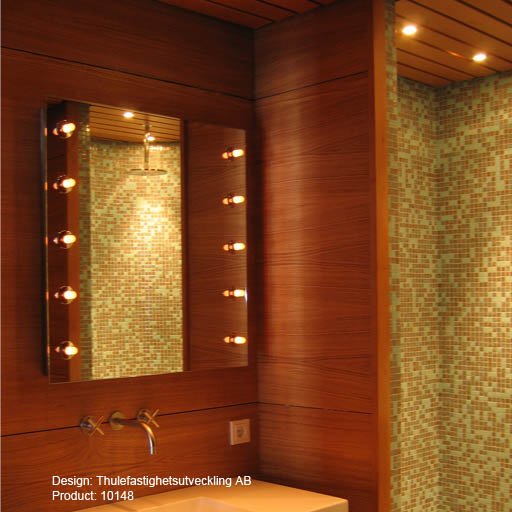

Bathroom and Mirror, Surface Mounted, Yacht Lighting

Fixing

Spring clips /SC

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD63-C1-350), 1.7W @ 500mA (LD63-C1-500)

Materials

Machined, chrome plated brass, hard anodised aluminium body, opal glass

IP Rating

IP65
