Colour-Matched. Precision-Cut. Quality-Assured. Built to Blend. Install-Ready.
Trusted by designers for precision, consistency, and total system integration. Our updated and extended Linear range brings that same expertise to flexible and rigid luminaires, giving you the freedom to create clean, continuous lines of light, perfectly matched in colour, quality, and performance across every application.

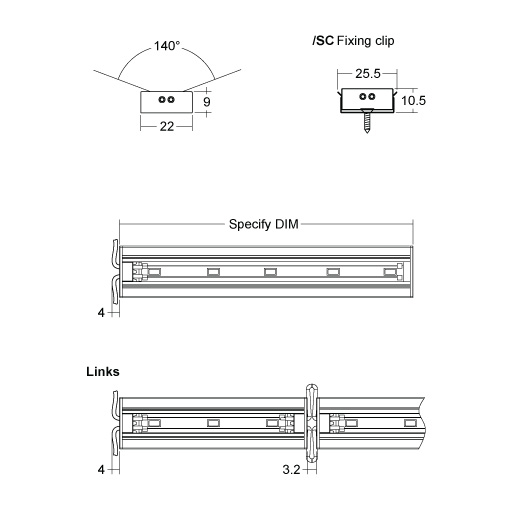

Line 22 is a compact, high-output linear system designed for architectural applications requiring broad, even illumination within limited space. Its low-profile body and wide beam distribution make it ideal for coves, shelves, and feature recesses. Offered with multiple LED outputs and diffuser options, Line 22 delivers specification-grade performance and visual comfort in a refined, minimal form.
Each fitting is built to order and tested in-house, ensuring precise lengths, clean visual continuity, and long-term reliability in interior, exterior, or marine environments.
Key Features
- Colour-matched to the full LightGraphix range for uniform illumination across all luminaire types
- Slim, low-profile linear system with wide-beam distribution
- 24 V DC system allowing long lengths from a single driver
- Colour-matched LEDs within 2-step MacAdam ellipse
- Continuous lengths up to 3041mm; custom-made to 1mm accuracy
- Various LED outputs, including Tunable White and RGB options
- Clear cover as standard; frosted diffuser available for softer light effect

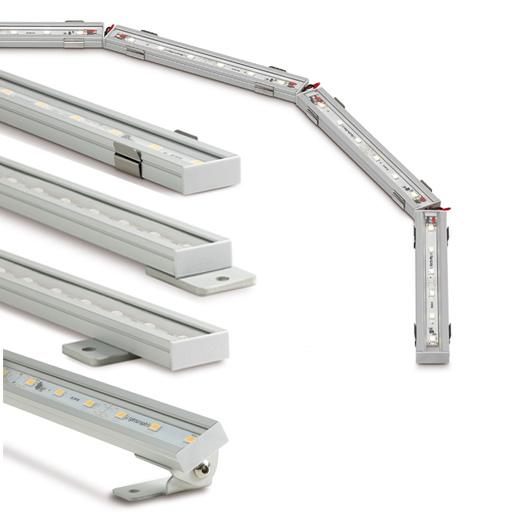

- Interlinked option for curved details
- IP40 as standard; IP54 version for humid environments
- Range of mounting options
- Dimming: Switched, 1–10 V, DMX, DALI
- Designed, manufactured, and tested in the UK
Linear

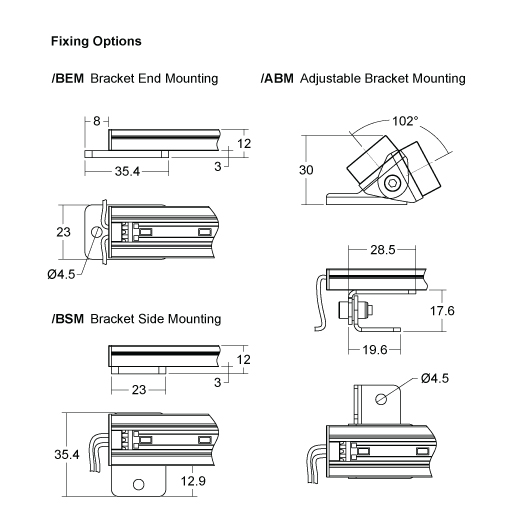

/SC Spring Clip fixing , /BEM Bracket end mounting (Max 1000mm), /BSM Bracket side mounting, /ABM Adjustable bracket mounting
Anodised aluminium, polycarbonate colourLED® profile polycarbonate end caps, Stainless steel brackets
IP40 as standard (IP54 option for pool/spa applications - not for exterior use)
