LD141DR

Description

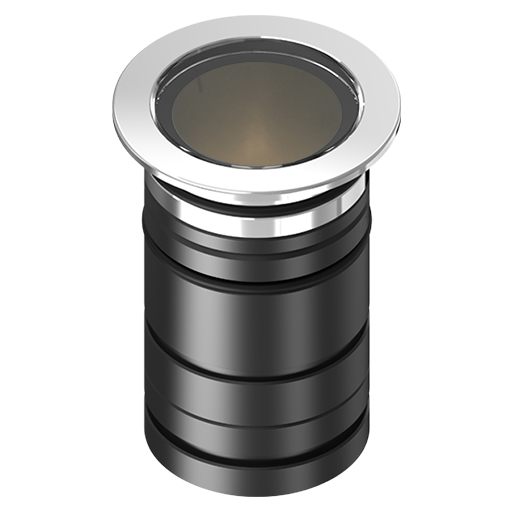

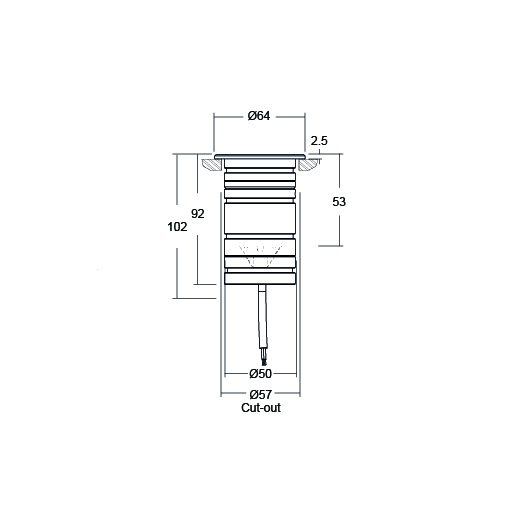

The LD141DR has been designed for exterior applications that require super low glare, with the lens assembly recessed 53mm into the body. Compact in size, it offers a powerful output with a large range of features. There are 2 LED engine options available. The E3 engine delivers a high output of 440lm and 12° narrow beam, whilst the F1 engine offers a super warm colour temperature of 2200K. Designed with a repairable light engine, the LD141DR offers a circular, low glare, solution for a wide range of exterior rated applications.

Applications

External, Recessed Uplighting, Wall Wash, (400lm-600lm) Compact range

Fixing

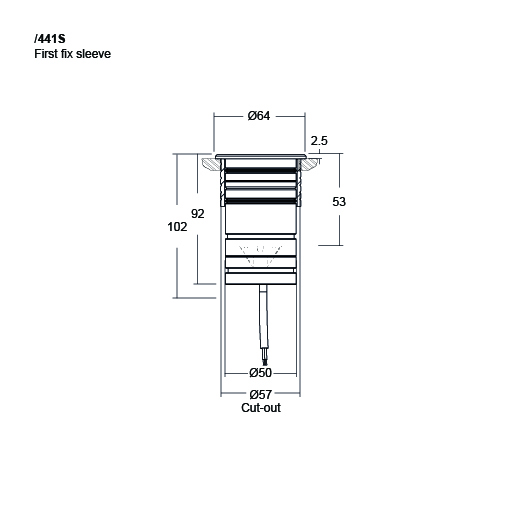

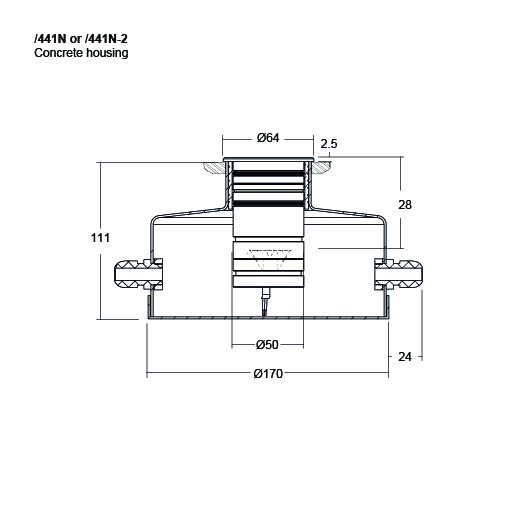

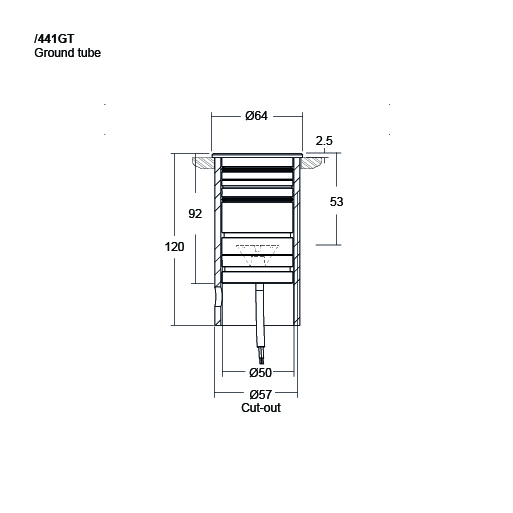

/SC - spring clips, /441S - first fix sleeve, /441N or /441N-2 (2-gland) concrete housing, /441GT - ground tube

LED Information

E3 NICHIA LED engine - up to 7W @ 500mA
F1 CREE LED engine - up to 5W @ 500mA

Materials

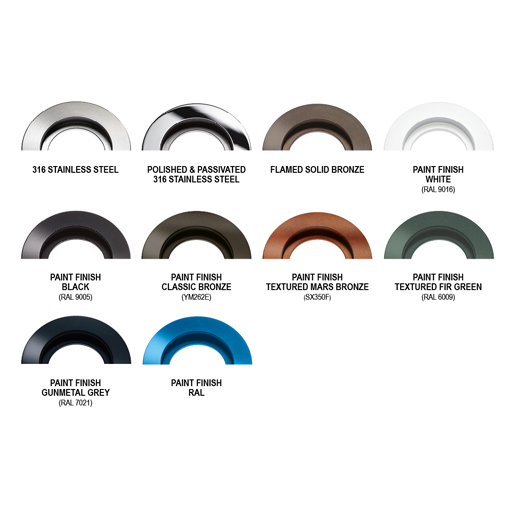

316 Stainless Steel bezel, hard anodised aluminium body, 6mm black ceramic screen print toughened glass

IP Rating

IP67

Accessories

Glare control: /GSHM - half moon glare shield

Downloads

LD141DR
LD141DRE3F1-5 Datasheet
LD141DR
Design Pack
LD141DR
Photometric LDT
Files
LD141DR
Drivers
