LD782

Description

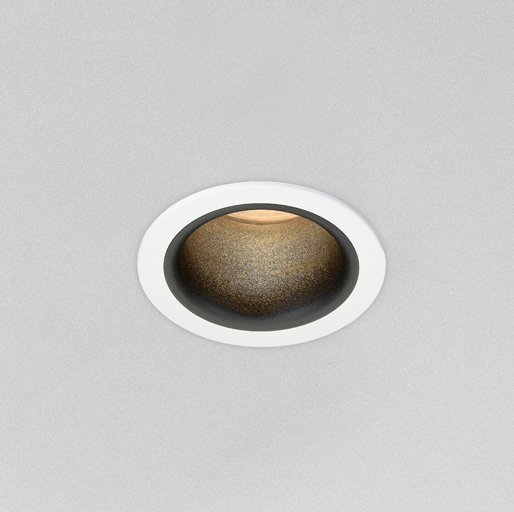

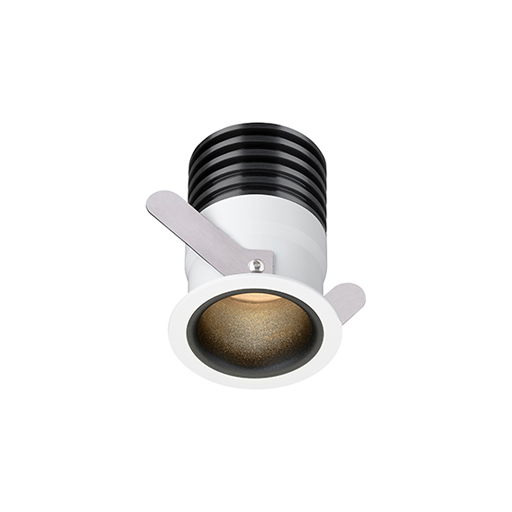

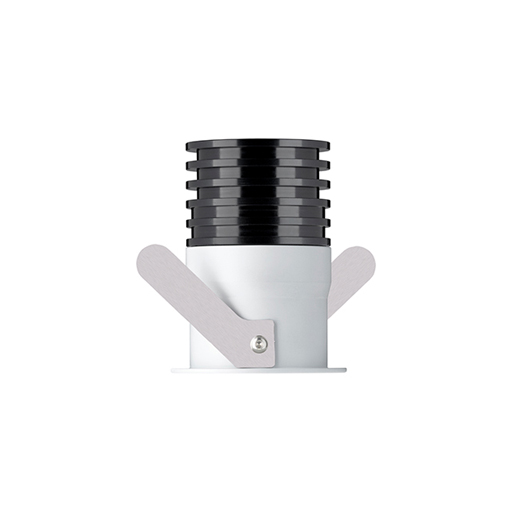

The compact LD782 has an excellent size to output ratio with a deep recessed LED which makes it ideal for general downlighting and the highlighting of walls and columns within interior, exterior and marine applications. Featuring as standard a matt black inner baffle for ultra-low glare, this along with the bezel can be painted in a wide range of colours offering endless styling options to suit your design scheme requirements. Available LED engines include E3 and F1, offering colour temperatures of 2200K-5000K and a variety of beam angles, including a tight 12° narrow beam with medium options for general downlighting. Though compact, the LD782 provides brilliant thermal and light output performance, with a single optic generating a superior beam shape and no multiple shadows.

Key features:

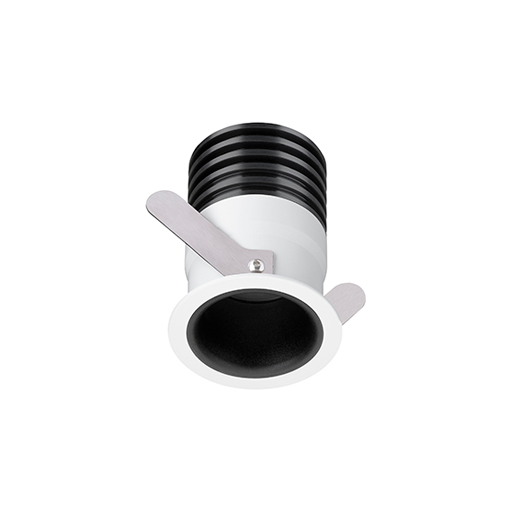

  • Very low glare with deep recessed optic set back 25mm
  • Single optic for superior beam shapes with no multiple shadows

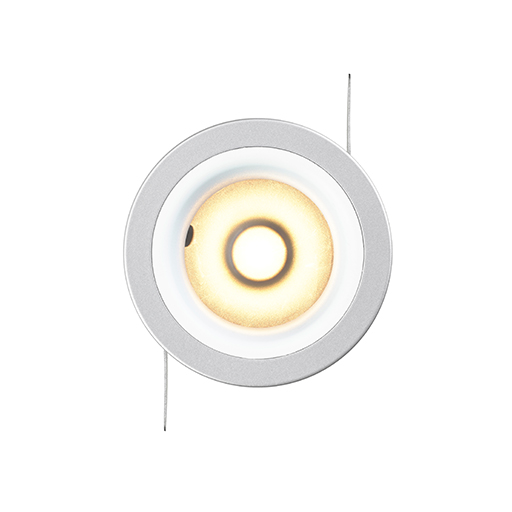

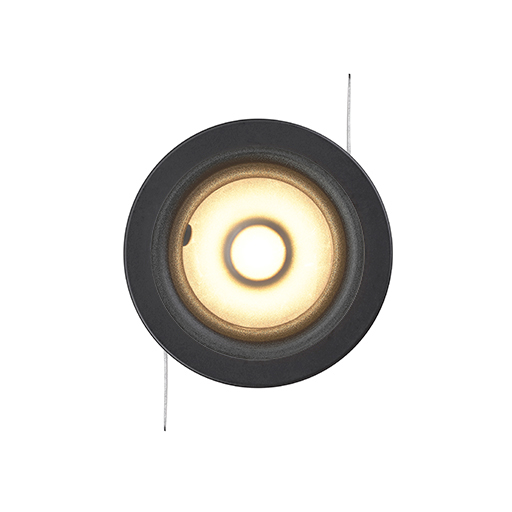

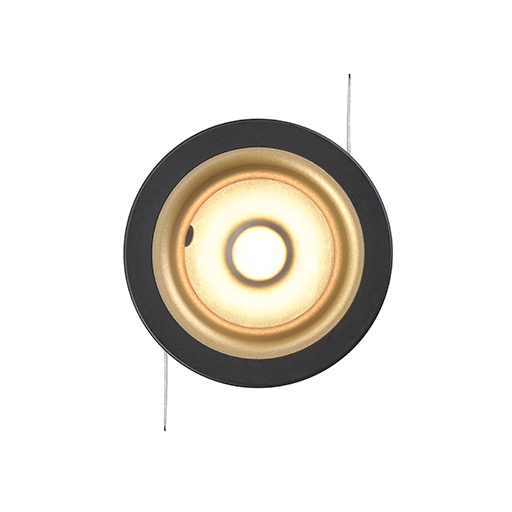

  • Matt black, low glare inner baffle is supplied as standard and can be painted in a colour of choice
  • Compact powerful fitting delivering upto 414lm in 3000K
  • 12° narrow spot beam available

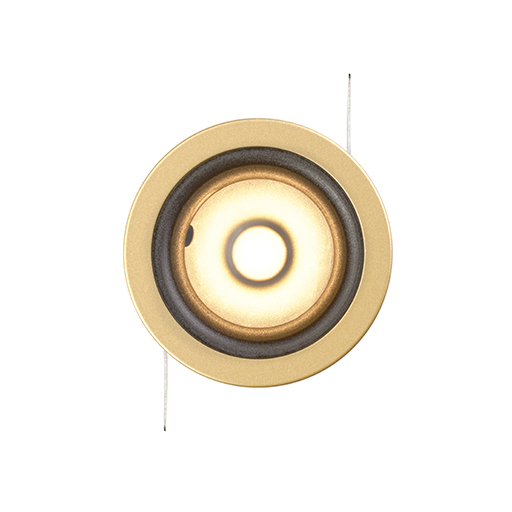

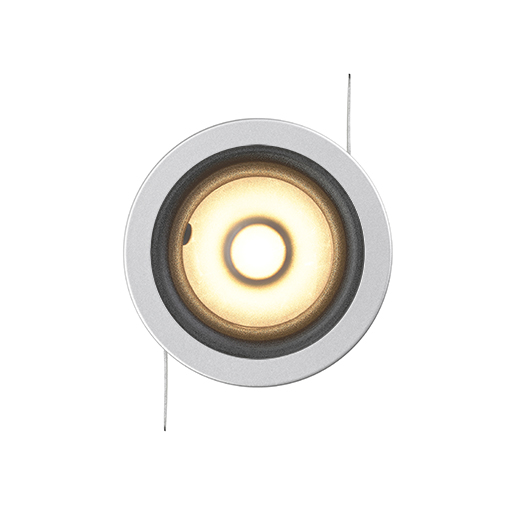

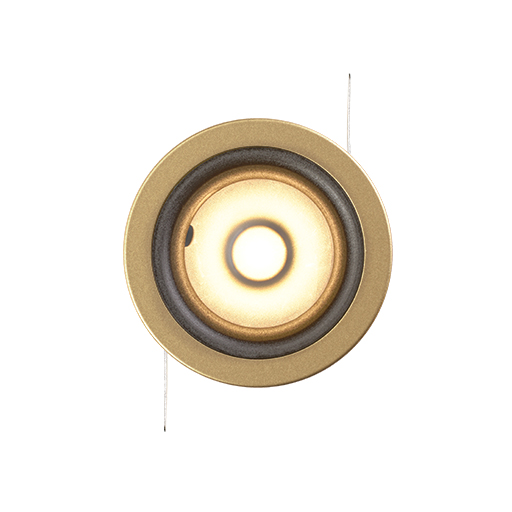

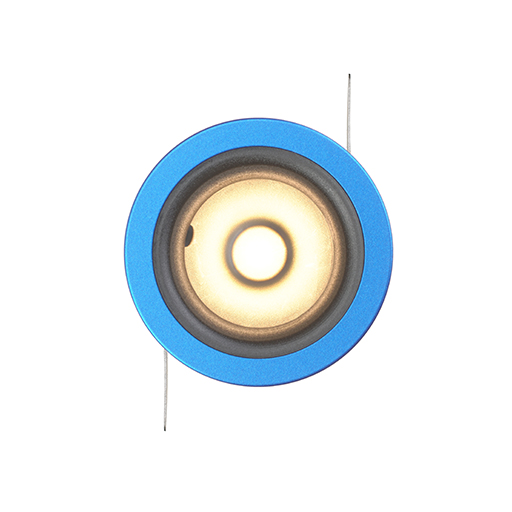

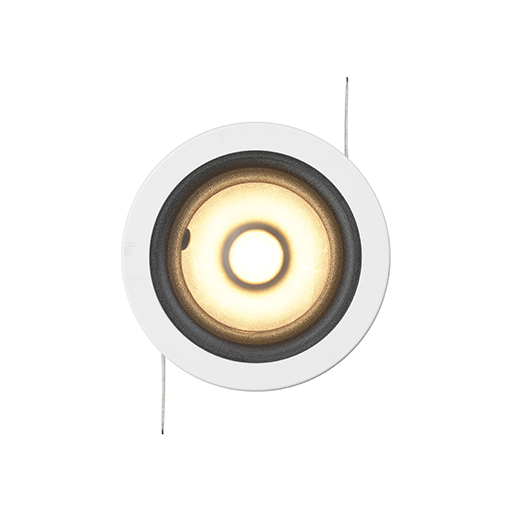

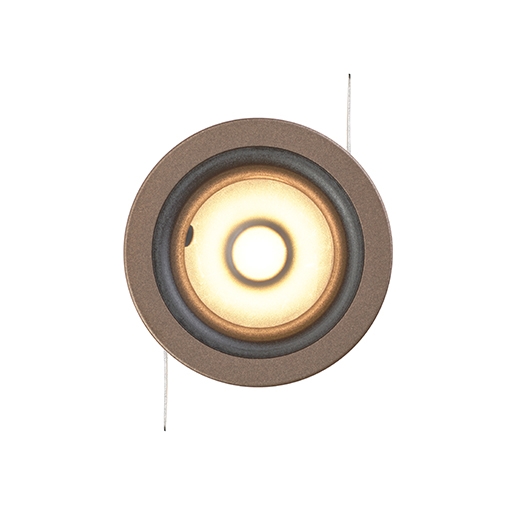

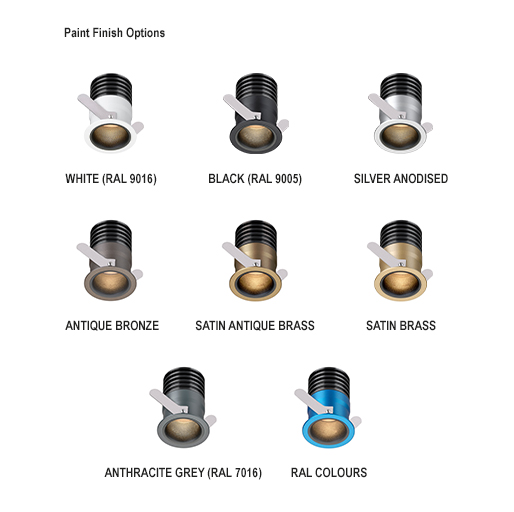

  • Machined aluminium bezel available in a wide range of finishes; White (RAL 9016), Black (RAL 9005), Silver, Antique Bronze, Satin Antique Brass, Satin Brass, Anthracite Grey (RAL 7016) or any RAL paint finish
  • Versatile fitting rated IP65, ideal for interior and exterior projects including marine, hospitality and residential general downlighting, column and wall washing
  • Features our E3 & F1 LED engines which are used across our uplight and surface mounted products enabling colour and beam consistency across a project
  • E3 engine features reverse polarity protection
  • F1 COB engine with super warm 2200K option and 90+ CRI
  • Switched, 0-10V, Casambi, DMX, DALI, or Mains dimmable drivers available



Applications

Bathroom and Mirror, Downlights, External, Wall Wash, Yacht Lighting, (400lm-600lm) Compact range

Fixing

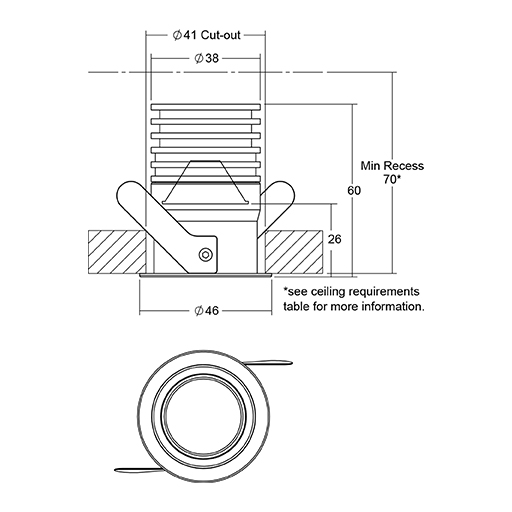

2 x spring clips supplied as standard

LED Information

E3 LED Engine - Up to 7W @ 500mA

F1 LED Engine - Up to 7W @ 700mA

Materials

Bezel: aluminium, available in a wide range of paint finishes Body: black anodised

IP Rating

IP65

Downloads

LD782
LD782E3F1-6 Datasheet
LD782
Design Pack
LD782
Photometric LDT
Files
LD782
Install Instructions
LD782
Drivers
