LD72DR

Description

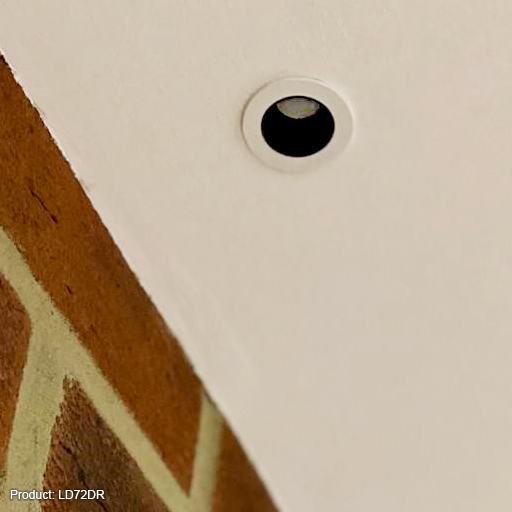

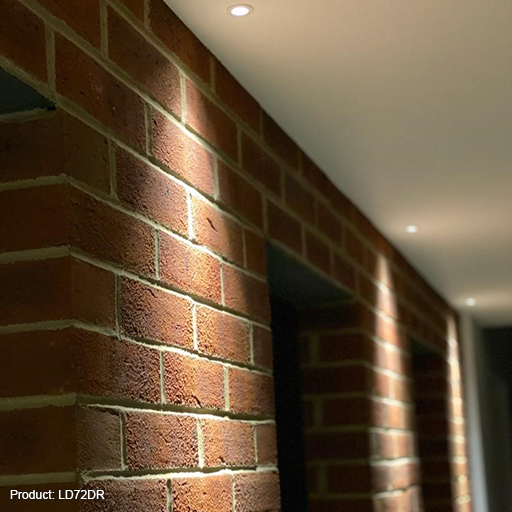

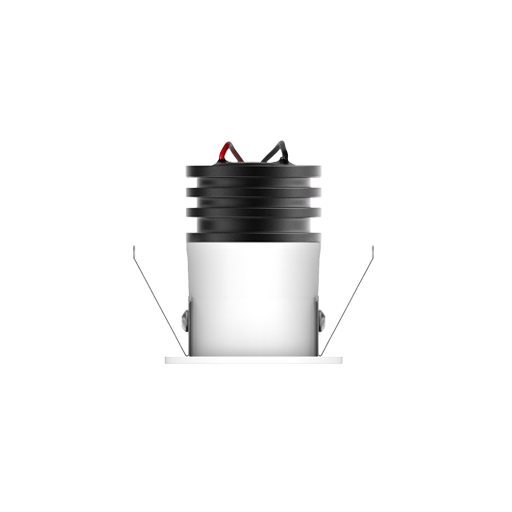

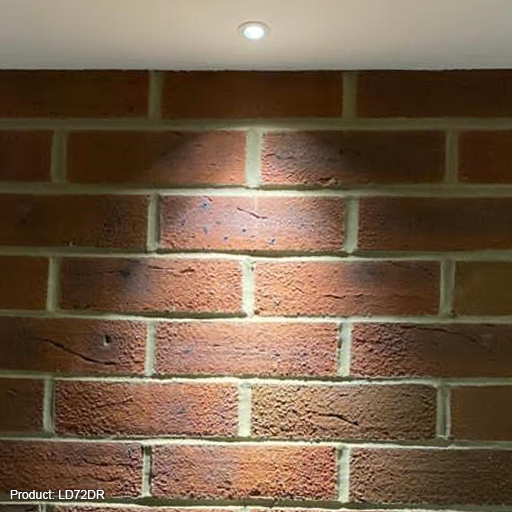

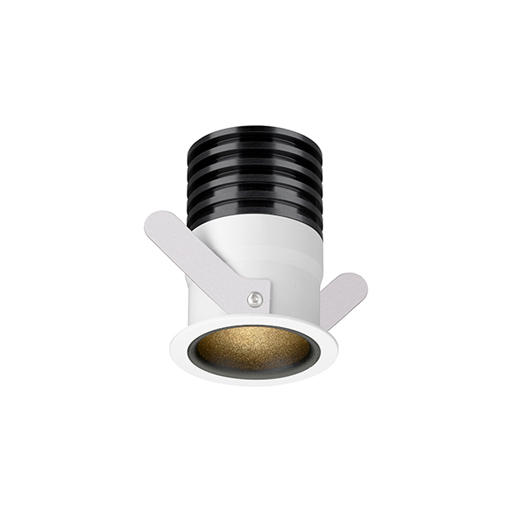

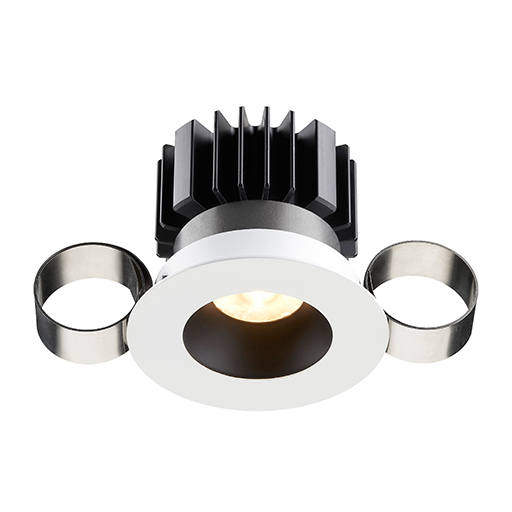

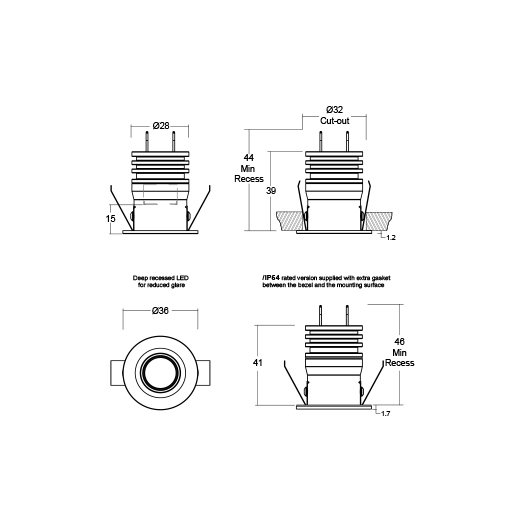

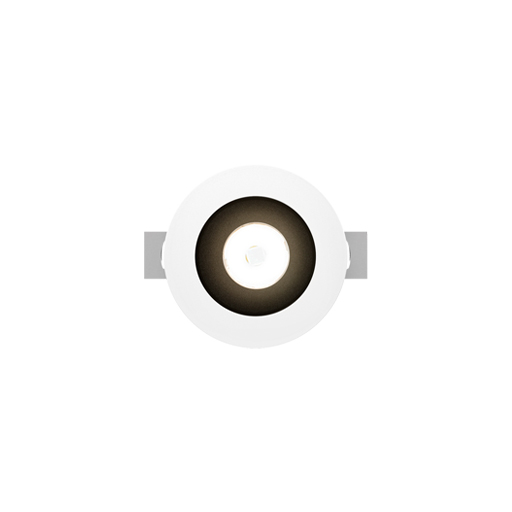

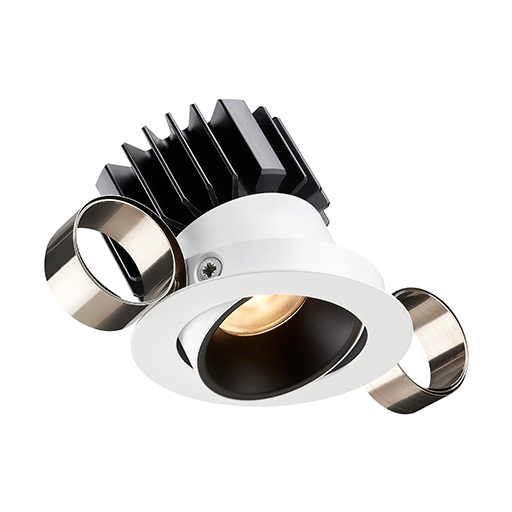

The new LD72DR is a miniature, deep recessed LED downlight with matt black baffle for low glare applications. Ideal for display, niches or general downlighting effects, the LD72DR is very discreet with the LED set back by 15mm to further reduce glare & and a painted bezel which can be matched to the mounting surface. Utilising the latest LED technology, the LD72DR achieves a typical CRI of 93 in warm white. IP40 as standard, but can be specified IP54 for bathrooms or wet environments.

Applications

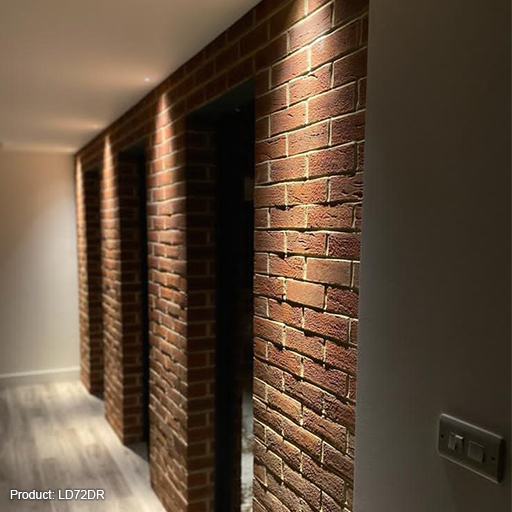

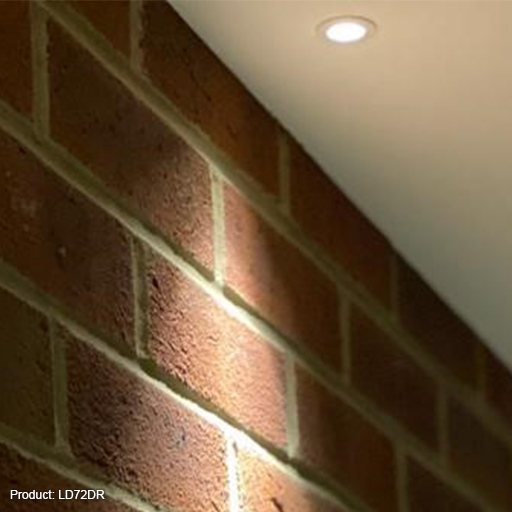

Bathroom and Mirror, Display and Shelf, Downlights, Picture Lighting, Wall Wash

Fixing

2 Spring Clips

Lamp Information

Cree XPG: 3 output options - 1.2W @ 350mA (LD72DR-350), 1.7W @ 500mA (LD72DR-500) and 2.4W @ 700mA (LD72DR-700)

Materials

Anodised aluminium

IP Rating

IP40 as standard (IP54 option available)

Downloads

LD72DR
LD72DR Datasheet
LD72DR
Design Pack
LD72DR
Photometric LDT
Files
LD72DR
Drivers
