LD792

Description

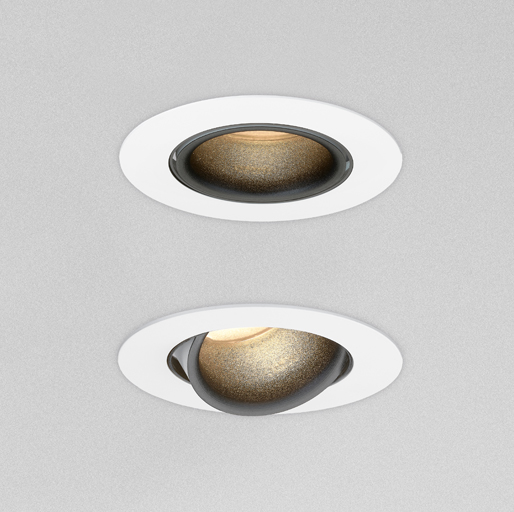

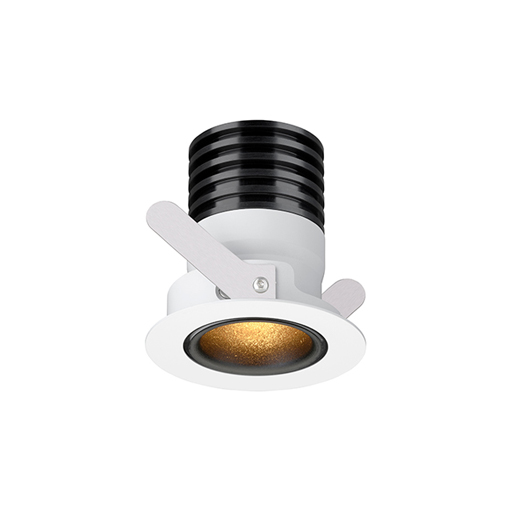

The compact LD792 has an excellent size to output ratio with a deep recessed LED that is ideal for general downlighting and the highlighting of walls and columns within interior, exterior and marine applications. Featuring as standard a matt black inner baffle for ultra-low glare, this along with the bezel can be painted in a wide range of colours offering endless styling options to suit your design scheme requirements. The adjustable lens assembly can be tilted up to 30° to allow ultimate flexibility when focusing the product. Available LED engines include E2 and F1, offering colour temperatures of 2200K-5000K and a variety of beam angles, including a super tight 10° narrow beam with medium options for more general downlighting. Though compact, the LD792 provides brilliant thermal and light output performance, with a single optic generating a superior beam shape and no multiple shadows.

Key features:

  • Very low glare with a deep recessed optic set back 25mm

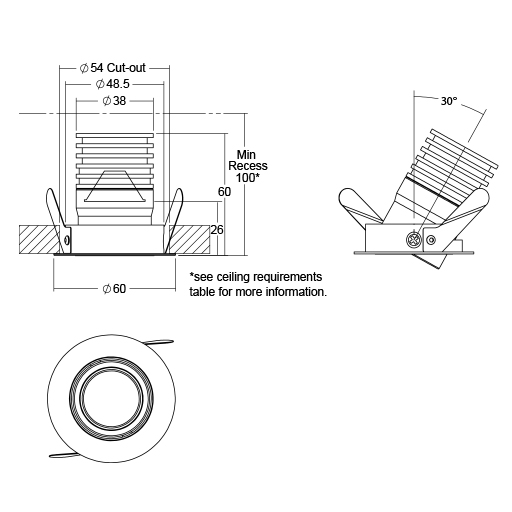

  • Black anti-glare ring (see diagram) to prevent glare when tilted
  • Single optic for superior beam shape with no multiple shadows

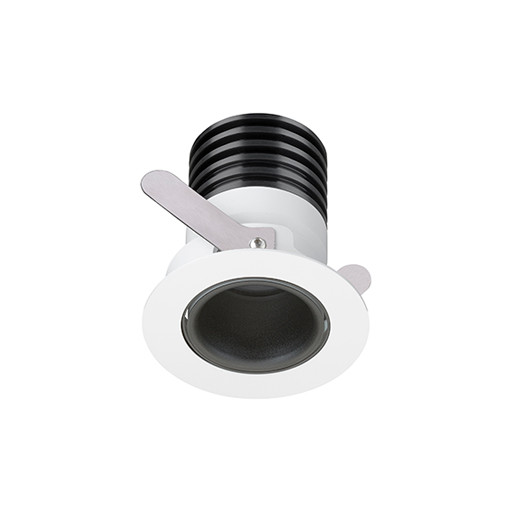

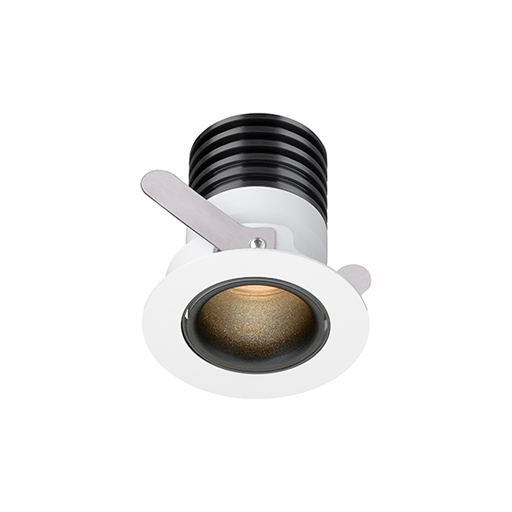

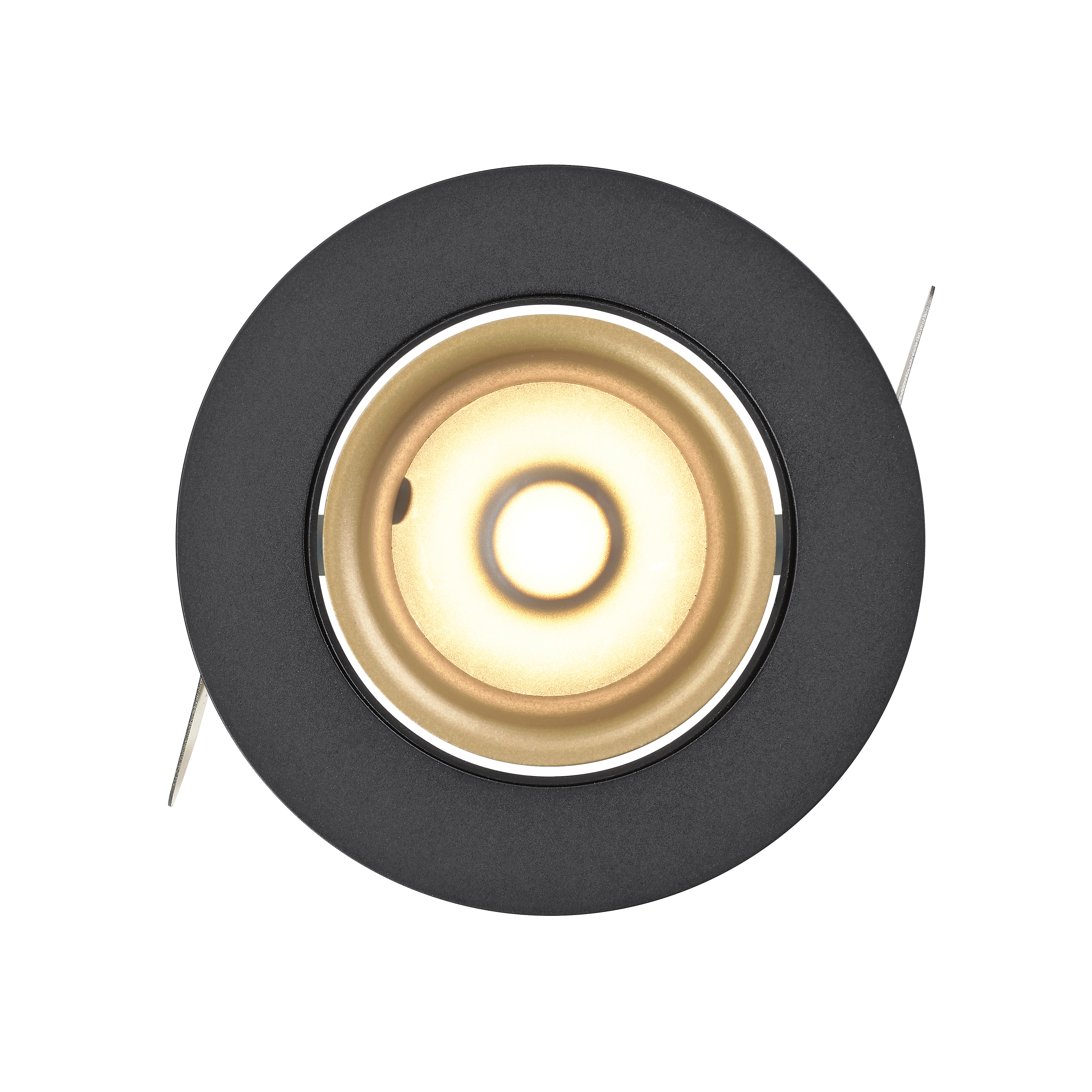

  • Matt black, low glare inner baffle is supplied as standard and can be painted in a colour of choice
  • Compact powerful fitting delivering up to 385lm in 3000K
  • Super tight 10° narrow spot beam available

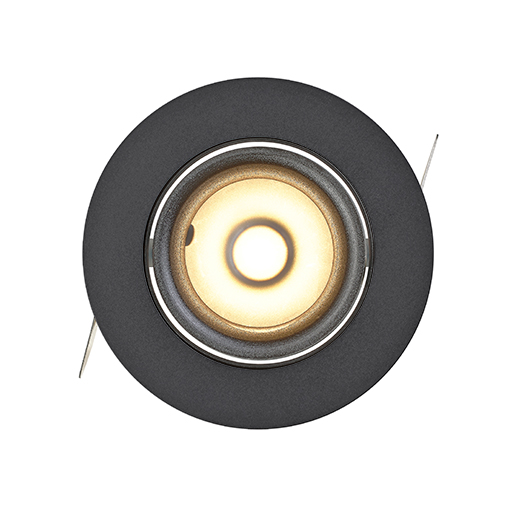

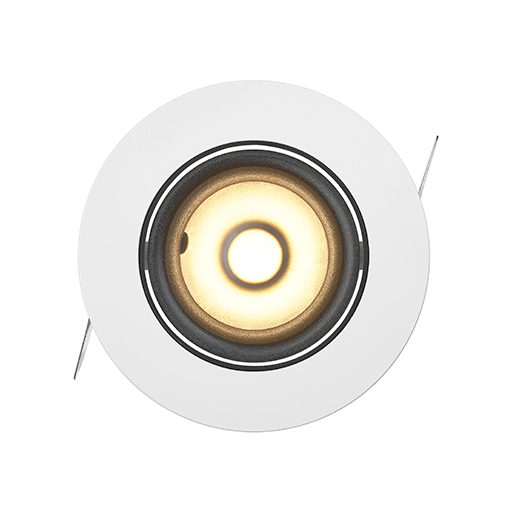

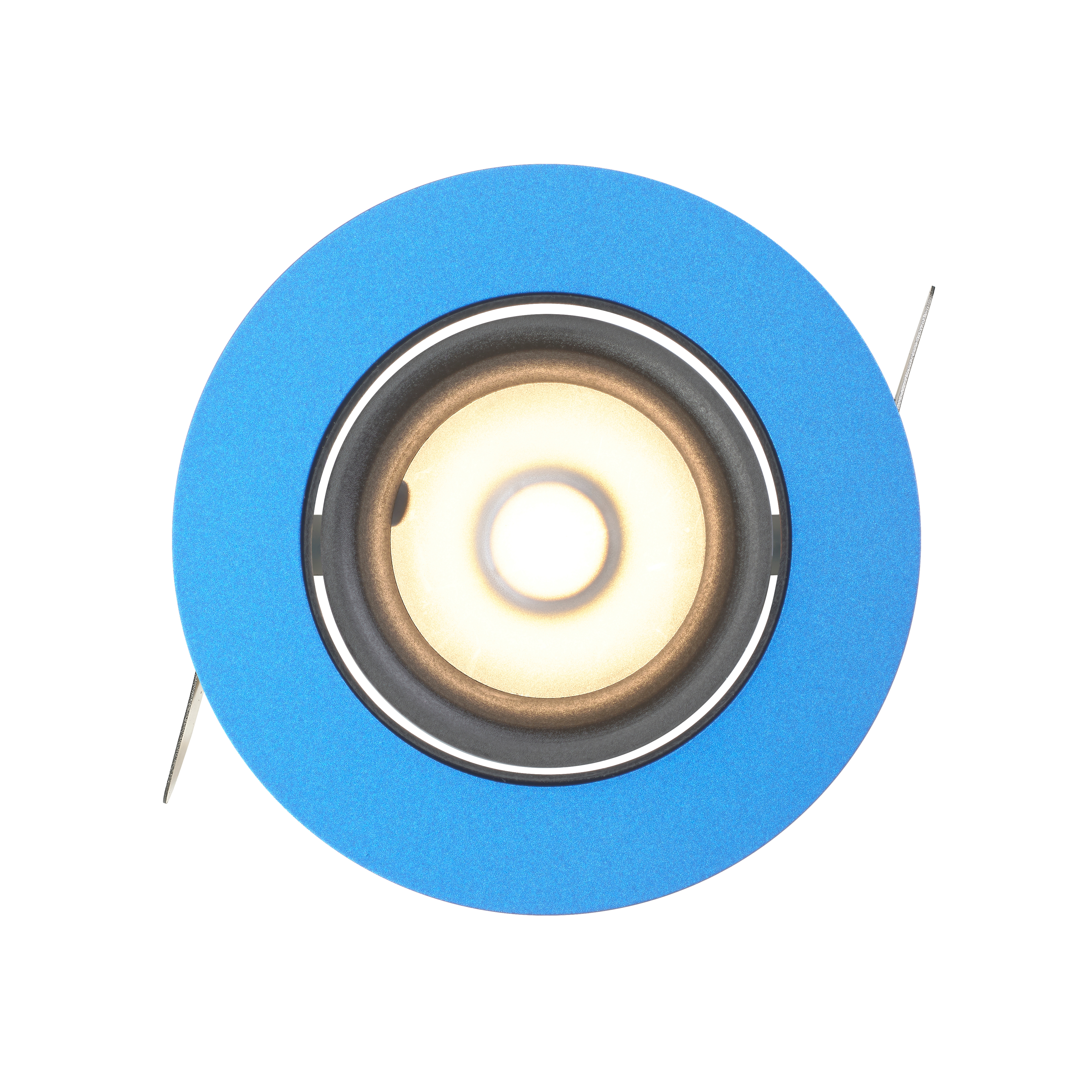

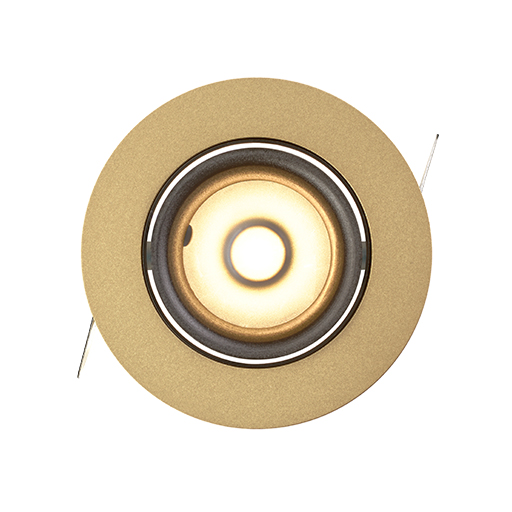

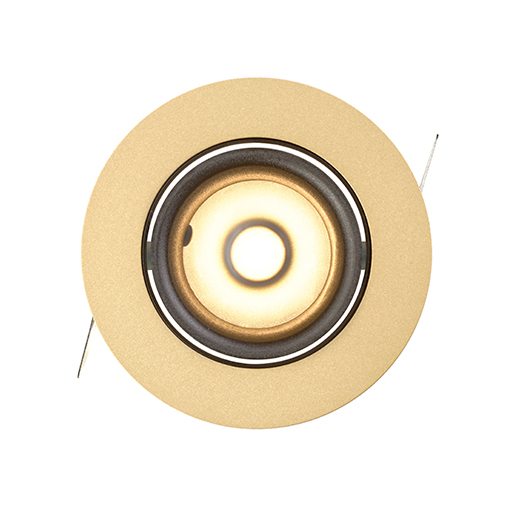

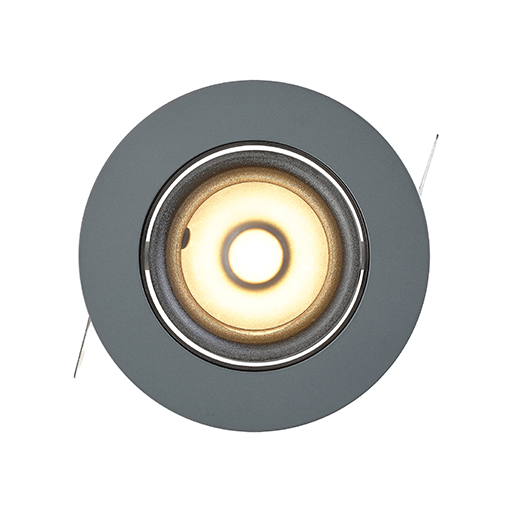

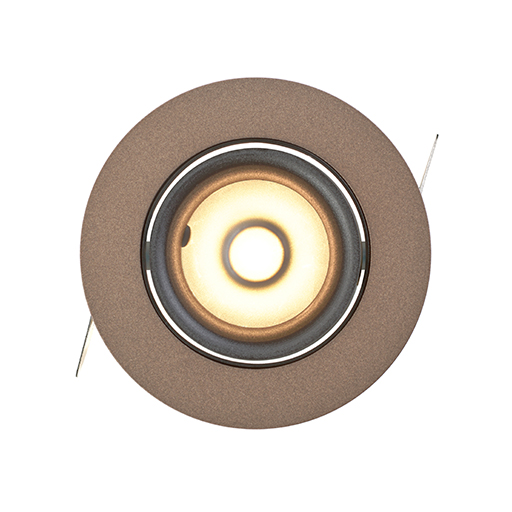

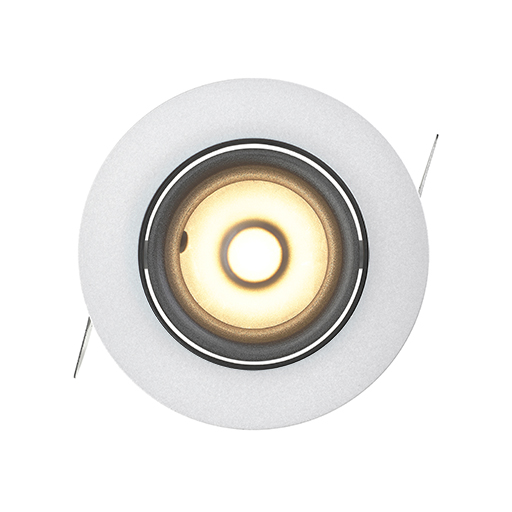

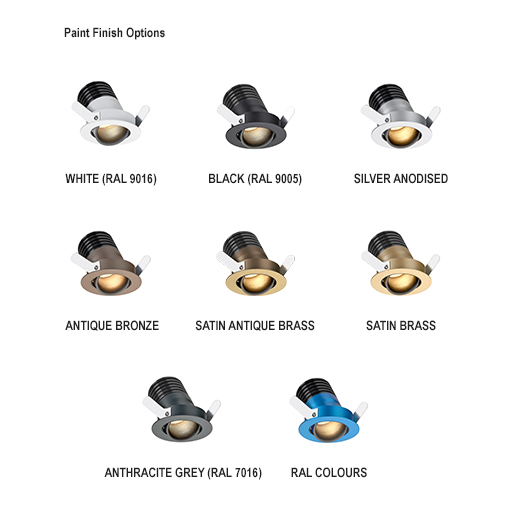

  • Machined aluminium bezel available in a wide range of finishes; White (RAL 9016), Black (RAL 9005), Silver, Antique Bronze, Satin Antique Brass, Satin Brass, Anthracite Grey (RAL 7016) or any RAL paint finish

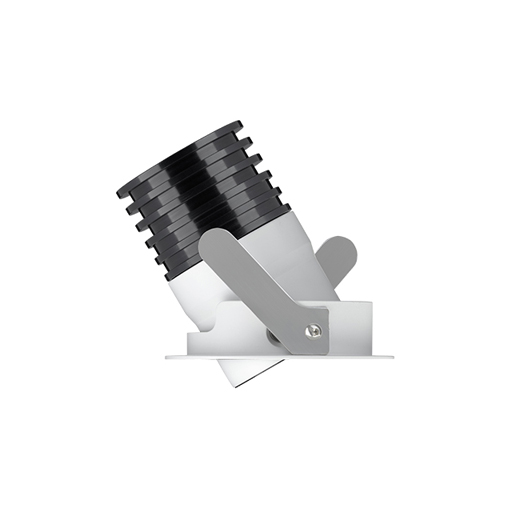

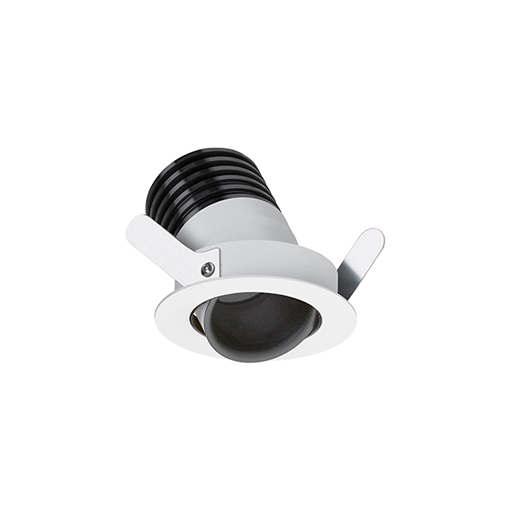

  • 30° tilt adjustability for ultimate flexibility
  • Versatile fitting rated IP65, ideal for interior and exterior projects including marine, hospitality and residential general downlighting, column and wall washing
  • Features our E2 & F1 LED engines which is used across our uplight and surface mounted products enabling colour and beam consistency across a project
  • E2 engine features reverse polarity protection
  • F1 COB engine with super warm 2200K option and 90+ CRI
  • Switched, 0-10V, Casambi, DMX, DALI, or Mains dimmable drivers available

Applications

Bathroom and Mirror, Downlights, External, Wall Wash, Yacht Lighting

Fixing

2 x spring clips supplied as standard

Lamp Information

E2 LED Engine - Up to 7W @ 500mA

F1 LED Engine - Up to 7W @ 700mA

Materials

Bezel: aluminium, available in a wide range of paint finishes Body: black anodised

IP Rating

IP65
