LD71M

Description

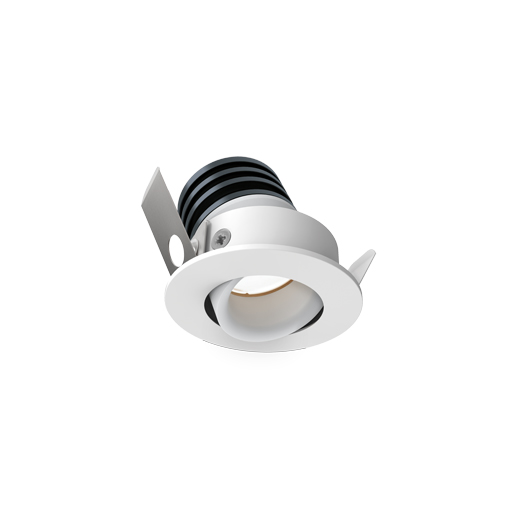

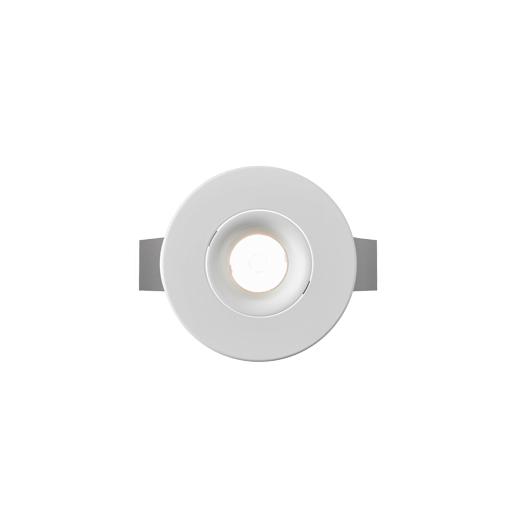

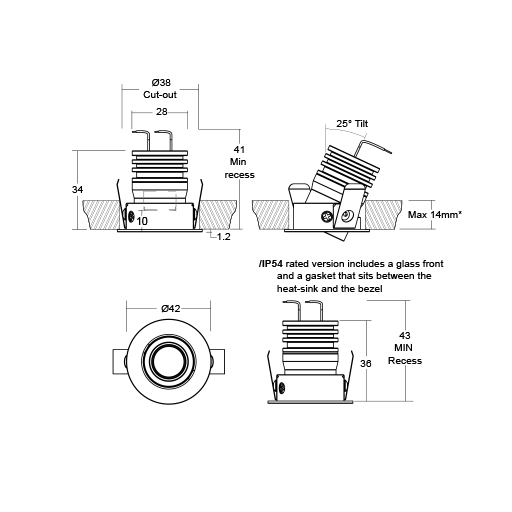

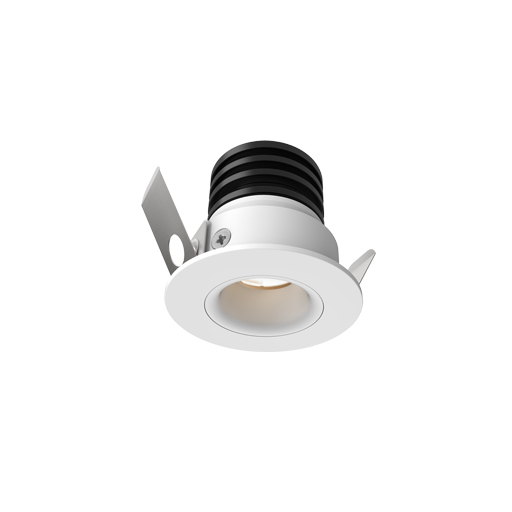

The LD71M is 12mm smaller in diameter than the LD71 it replaces. It is a miniature, adjustable LED downlight, ideal for display, niches or general downlighting effects. It is very discreet with the LED recessed by 10mm to reduce glare, with a maximum tilt of 25° and a painted bezel which can be matched to the mounting surface. Typical CRI of 93 in warm white. IP40 as standard, but can be specified IP54 for bathrooms or wet environments.

Applications

Bathroom and Mirror, Display and Shelf, Downlights, Picture Lighting, Wall Wash, Yacht Lighting, RLE - Replaceable Light Engines

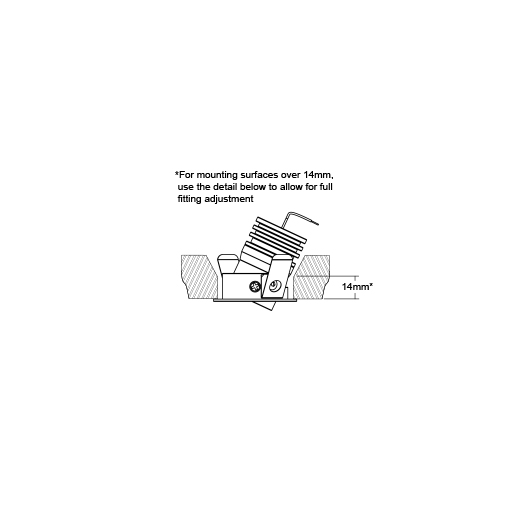

Fixing

Spring Clips /SC

LED Information

NICHIA C1 LED Engine: 1.2W @ 350mA (LD71M-C1-350), 1.7W @ 500mA (LD71M-C1-500), 2.4W @ 700mA (LD71M-C1-700)

Materials

Anodised aluminium body and painted bezel

IP Rating

IP40 (IP54 option for bathrooms and spa areas)

Downloads

LD71M
LD71MC1-4 Datasheet
LD71M
Design Pack
LD71M
Photometric LDT
Files
LD71M
Install Instructions
LD71M
Drivers
