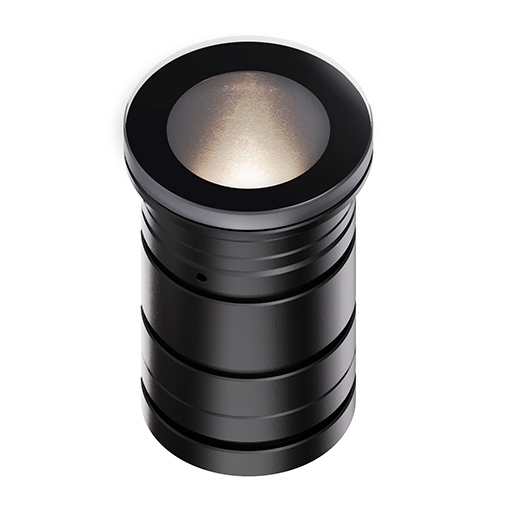

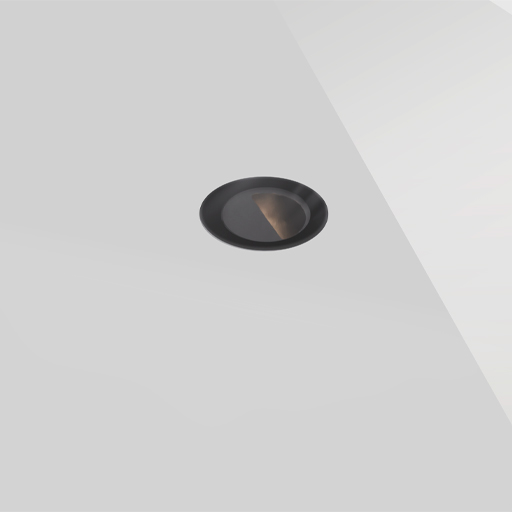

The new Trimless family is an exciting new addition to the LightGraphix product portfolio, offering lighting designers a modern aesthetic for their projects. They have been made possible by the modularisation of some of our existing fittings. The LD141DRG has been designed for exterior applications that require ultra low glare, with the lens assembly recessed 53mm into the body. Compact in size, it offers a powerful output with a large range of features. There are 2 LED engine options available. The E3 engine delivers a high output of 440lm and 12° narrow beam, whilst the F1 engine offers a super warm colour temperature of 2200K. Designed with our all-glass bezel, the LD141DRG offers a seamless, super lowglare solution for a range of exterior-rated applications.
External, Recessed Uplighting, Wall Wash, Yacht Lighting, (400lm-600lm) Compact range, Trimless

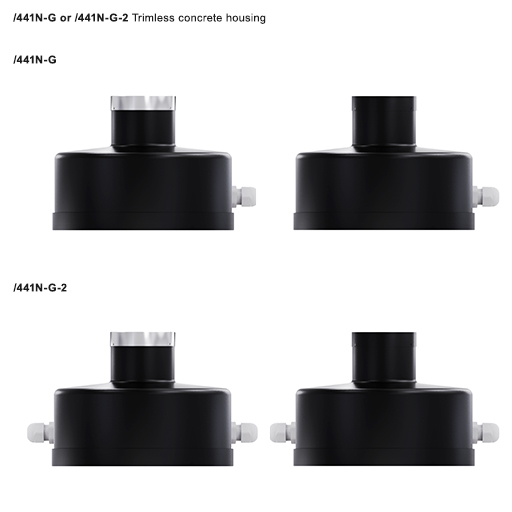

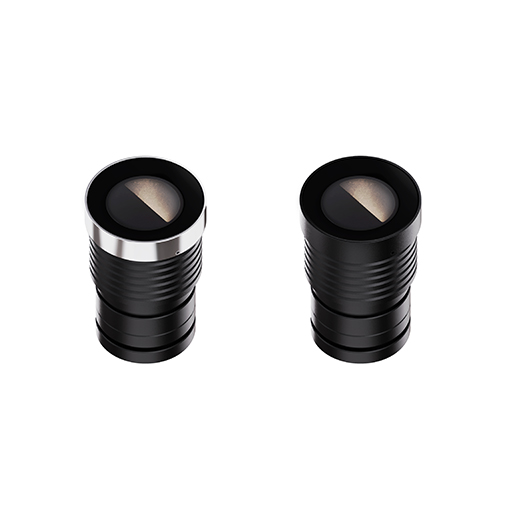

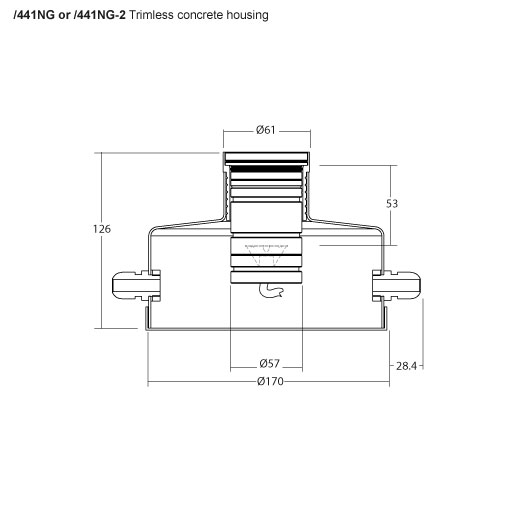

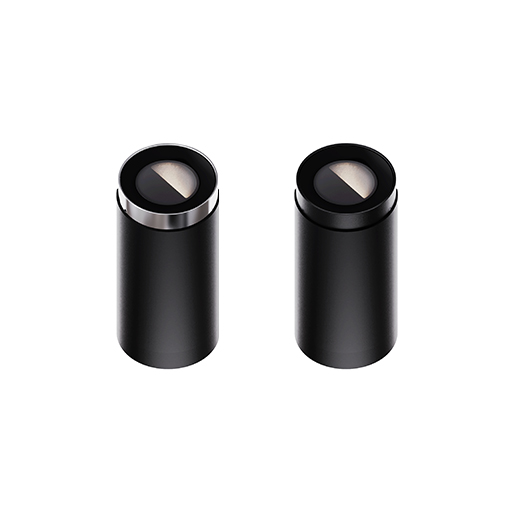

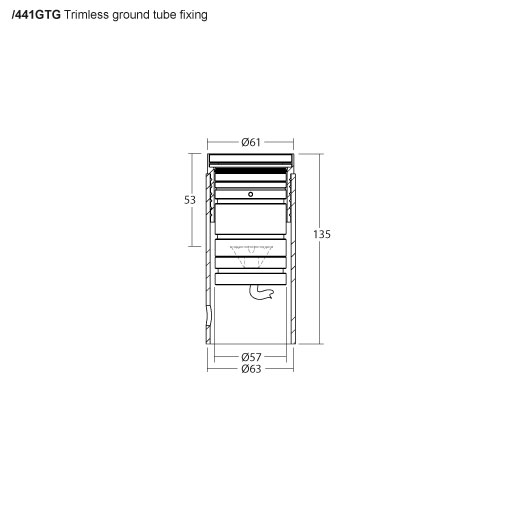

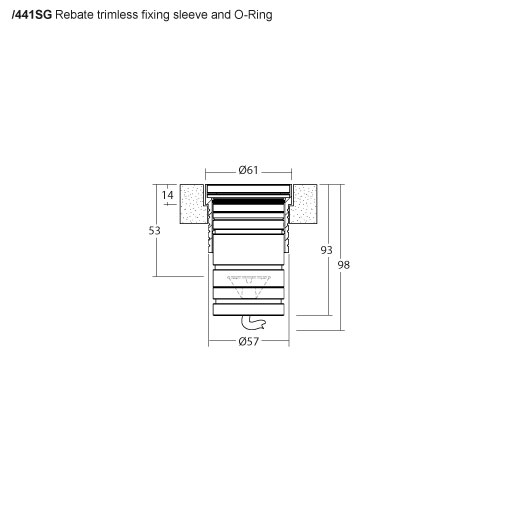

Rebated trimless fixing sleeve (/441SG), Trimless ground tube fixing (/441GT), Trimless concrete housing with one or two glands (/441NG or /441NG-2)
E3 NICHIA LED engine - up to 7W @ 500mA
F1 CREE LED engine - up to 5W @ 500mA
Anodised aluminium body, glass bezel

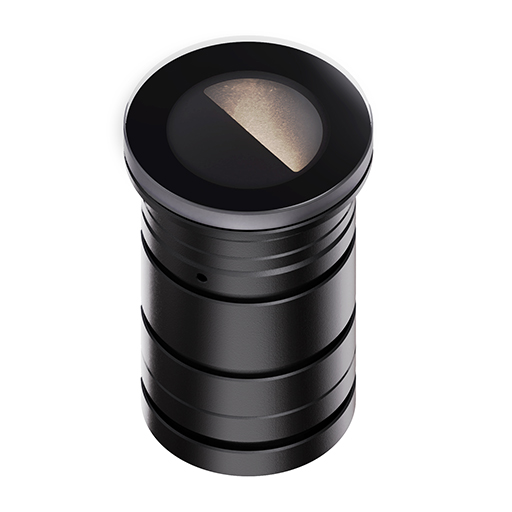

Optional half-moon glare shield (/GSHM)
