LD141G

Description

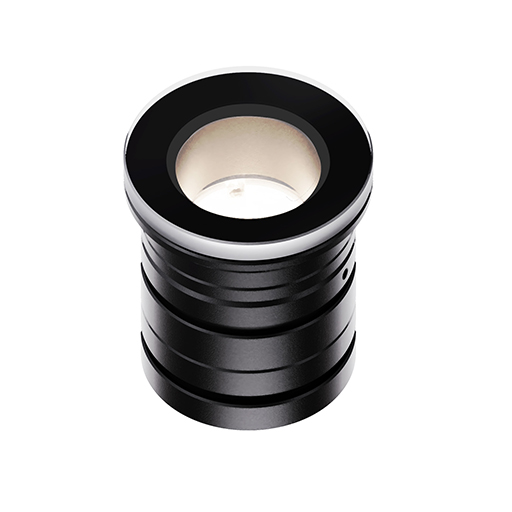

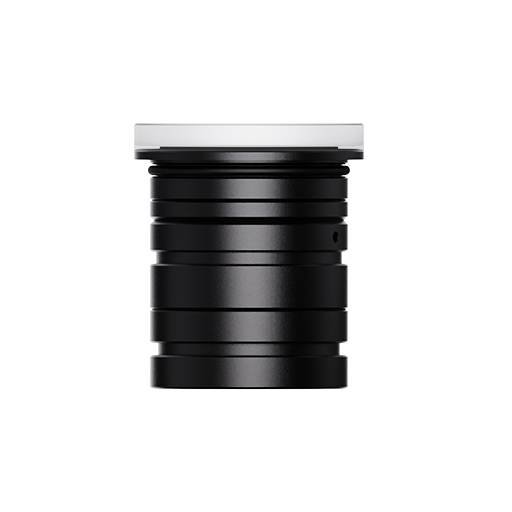

The new Trimless family is an exciting new addition to the LightGraphix product portfolio, offering lighting designers a modern aesthetic for their projects. They have been made possible by the modularisation of some of our existing fittings. The LD141G has been designed for exterior applications, with an IP67 rating and a robust seamless all glass bezel. Compact in size, the fitting offers a powerful output with a large range of features. There are 2 LED engine options available. The E3 engine delivers a high output of 462lm and beam angles ranging from a 12° narrow to a 15° x 49° extra oval beam, whilst the F1 engine offers a super warm colour temperature of 2200K. Both configurations offer the ability to specify a 20° tilt film to angle the light down onto the lit surface for a more concentrated effect. Designed with our glass bezel, the LD141G offers a discreet, low-glare solution for a range of exterior-rated applications.

Applications

Cove Lighting, External, Recessed Uplighting, Wall Wash, Yacht Lighting, (400lm-600lm) Compact range, Trimless

Fixing

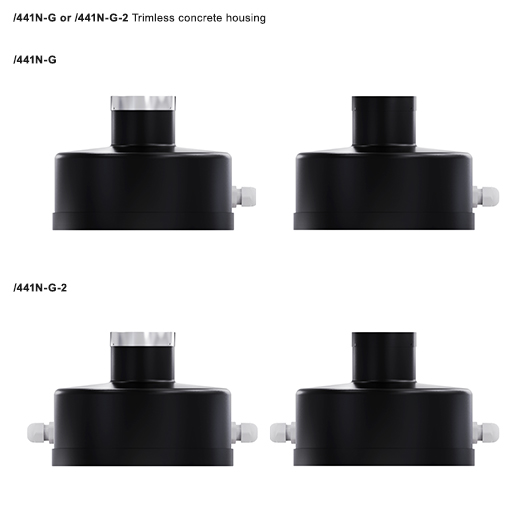

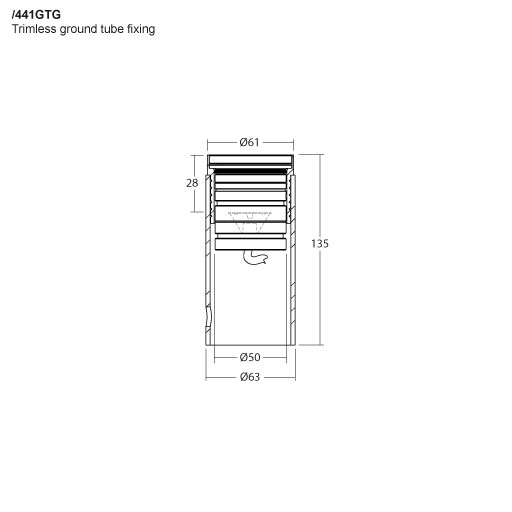

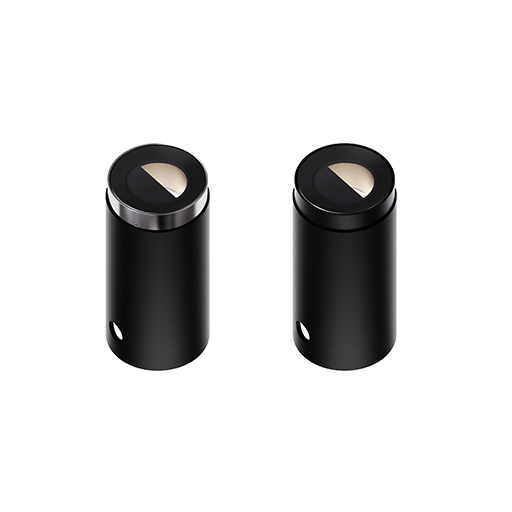

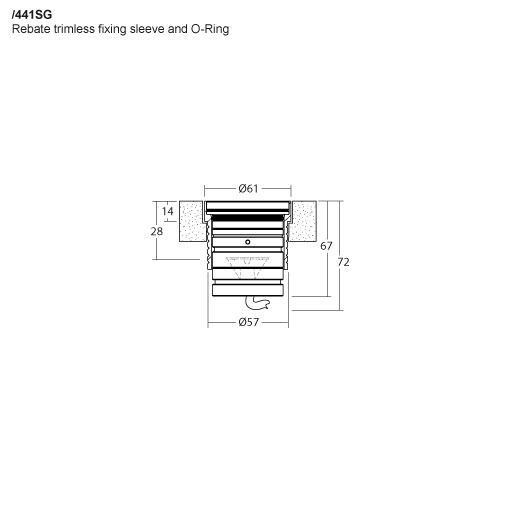

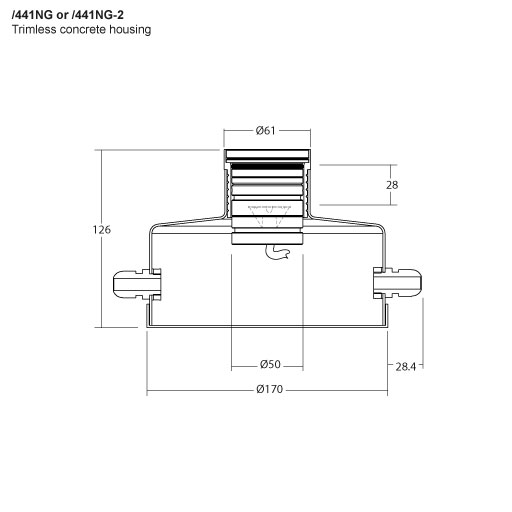

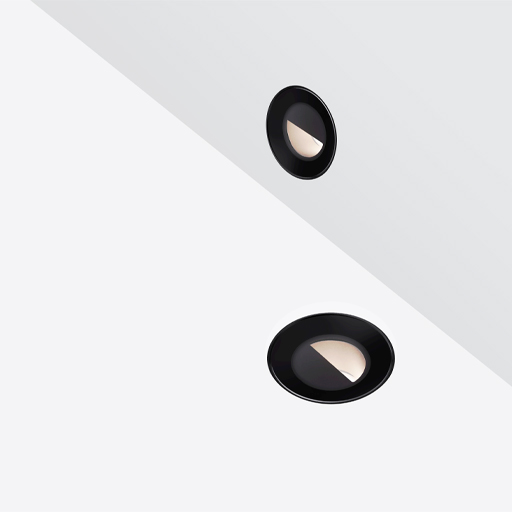

Rebated trimless fixing sleeve (/441s), Trimless ground tube fixing (/441GT), Trimless concrete housing with one or two glands (/441NG or /441NG-2)

LED Information

E3 NICHIA LED engine - up to 7W @ 500mA
F1 CREE LED engine - up to 5W @ 500mA

Materials

Anodised aluminium body, glass bezel

IP Rating

IP67

Accessories

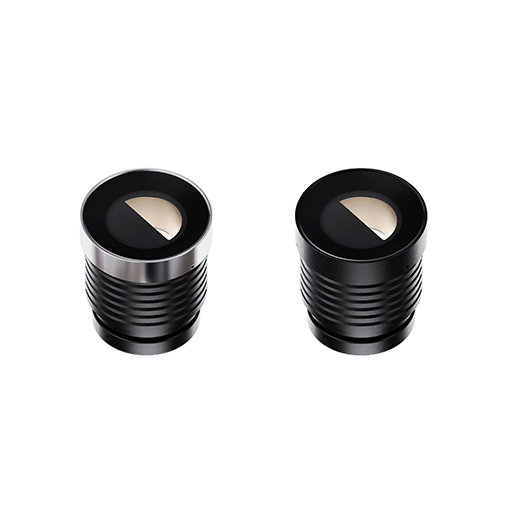

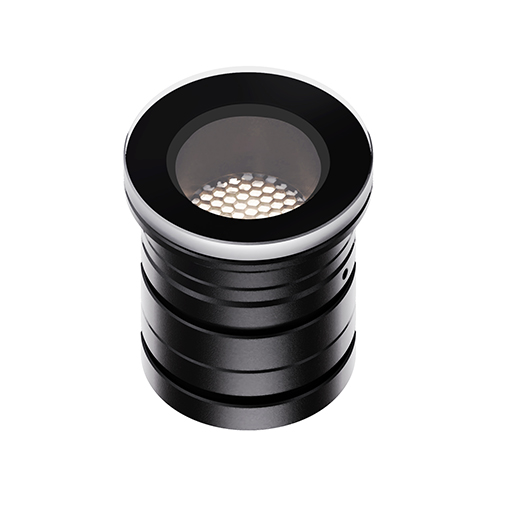

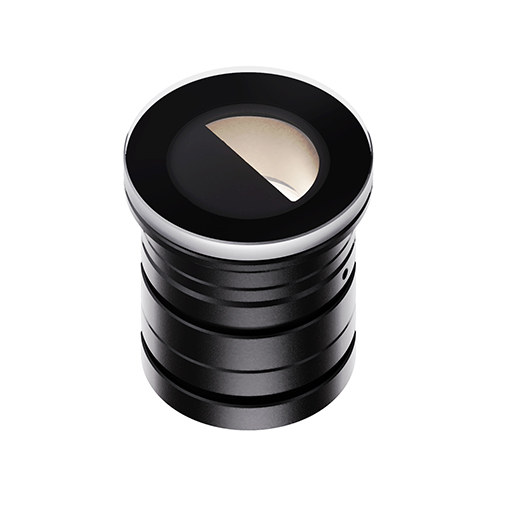

Half-moon glare shield (/GSHM), Honeycomb louvre (/HL)
