LD154

Description

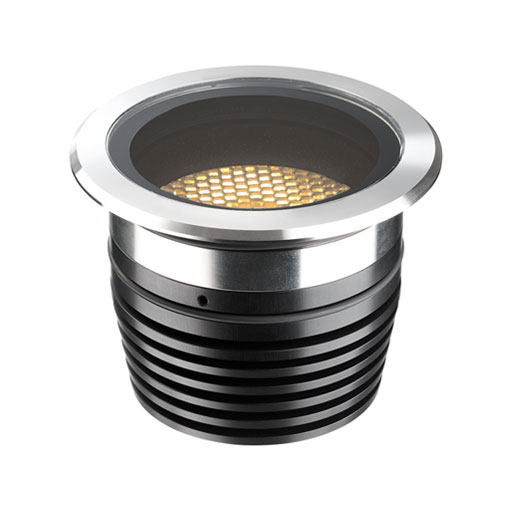

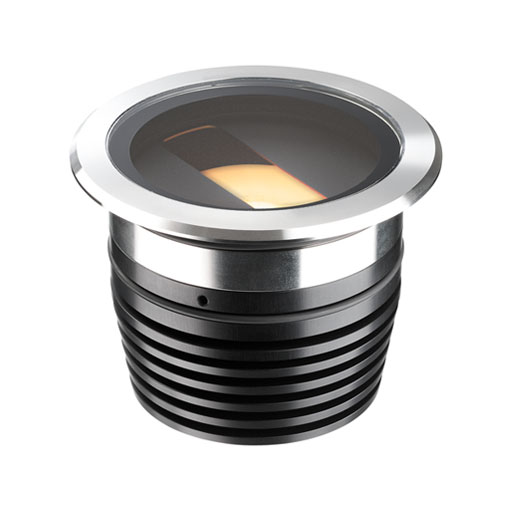

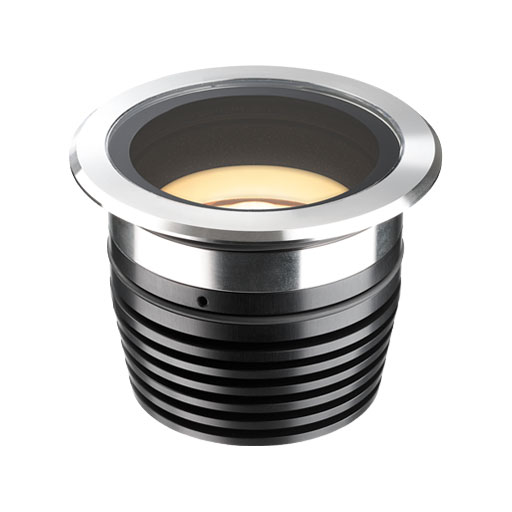

The LD154 is our most powerful fitting to date, delivering up to 1443lm from a minimal body depth of 71mm. It forms a new ULtra range of high-power uplight solutions for drive over, low glare (LD154DR) and asymmetric installations (LD154T).

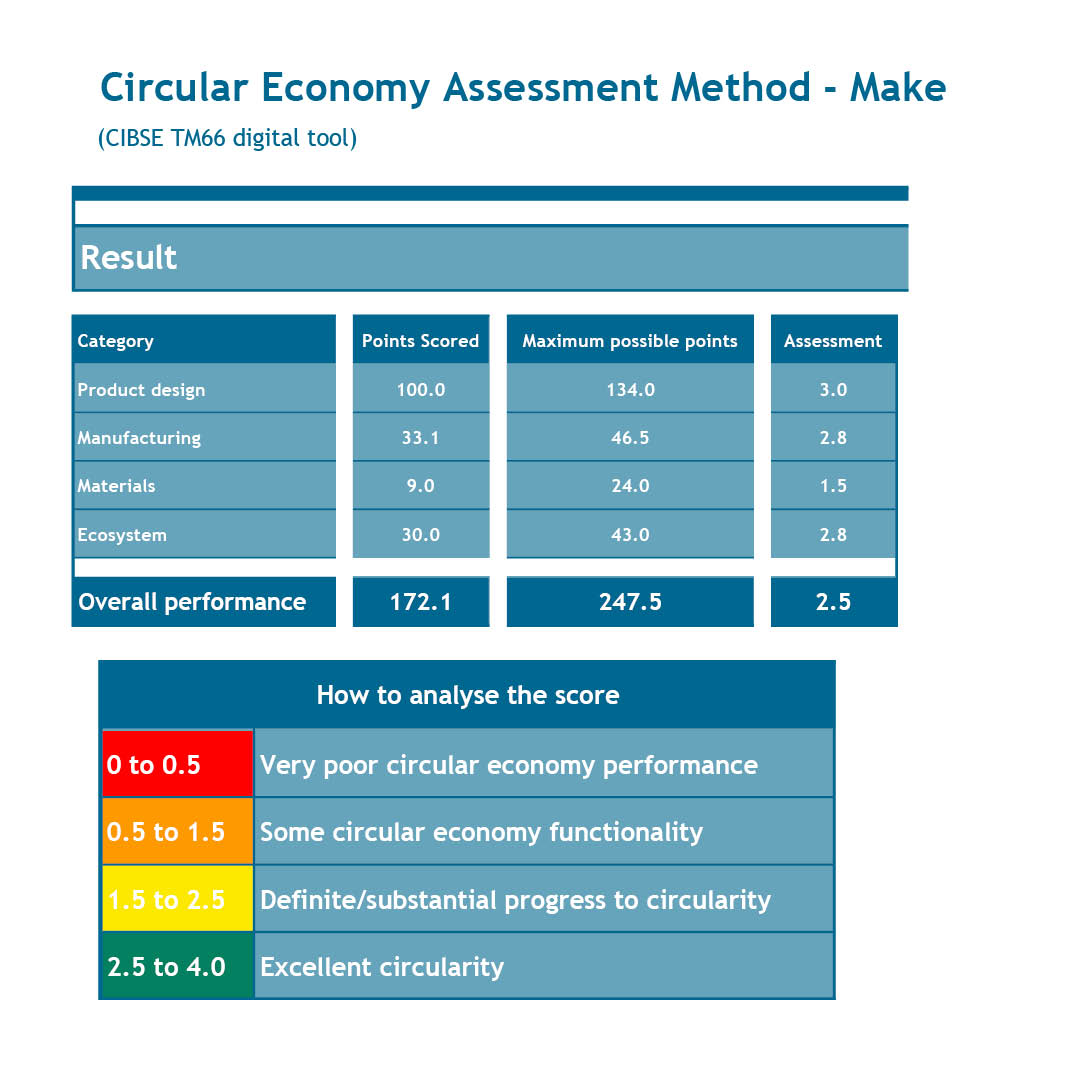

There are 3 LED engine options available. Our new P1 engine delivers the highest output, whilst the E3 offers an exceptional extra narrow beam of 9° and the N1, a 13° beam. The lens assembly features large 50mm optics which offer ultra-high efficiency, superior beam quality and low glare. Reaching heights of up to 14 metres, the LD154 demonstrates excellent size to output ratio and has been designed with a repairable engine, providing a robust circular solution for high-power uplight applications.

Applications

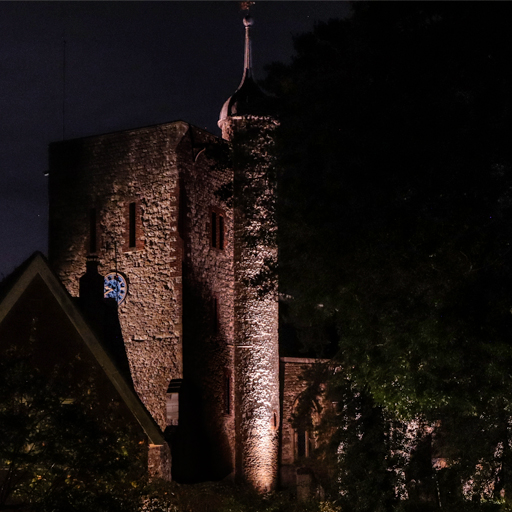

Recessed Uplighting, Wall Wash, Yacht Lighting, (900+ lm) Ultra range

Fixing

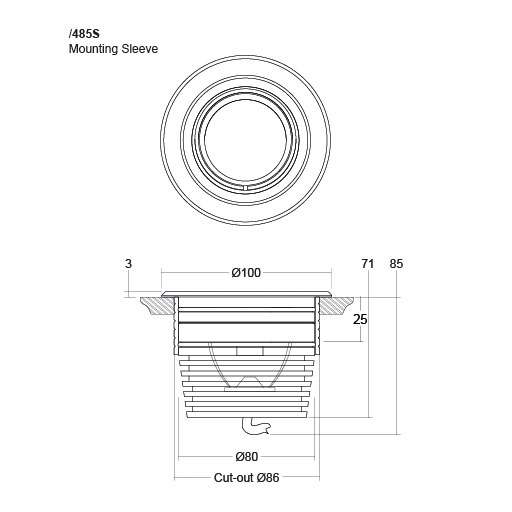

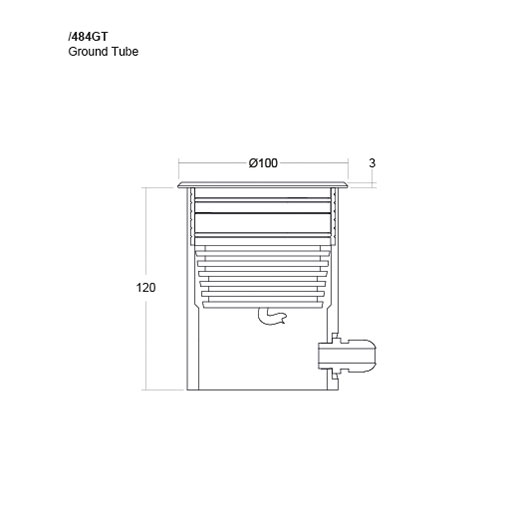

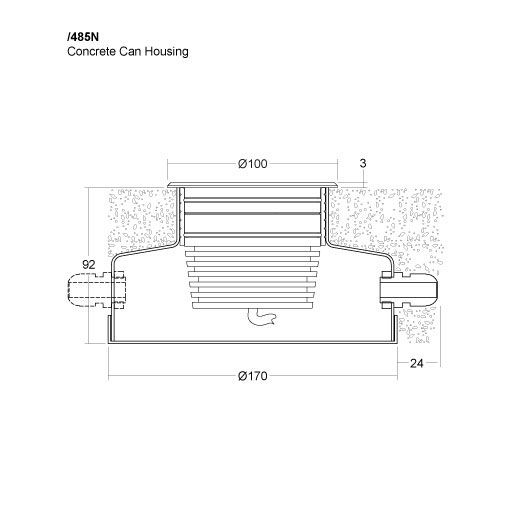

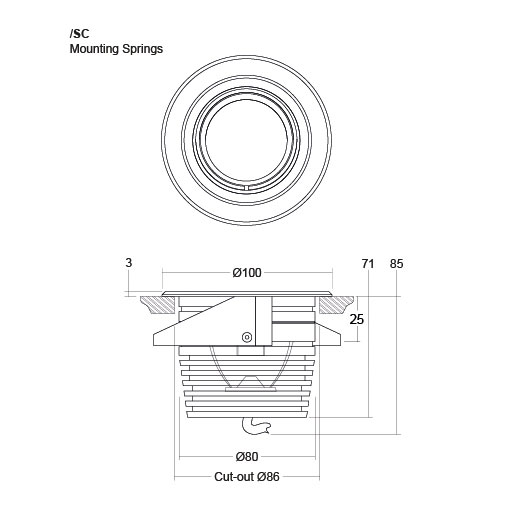

Spring clips, Fixing sleeve and o-rings, Concrete housing, Ground tube

LED Information

E3 LED engine - up to 10W @ 700mA
N1 LED Engine - up to 14W @ 700mA
P1 LED Engine up to 20W @ 500mA

Materials

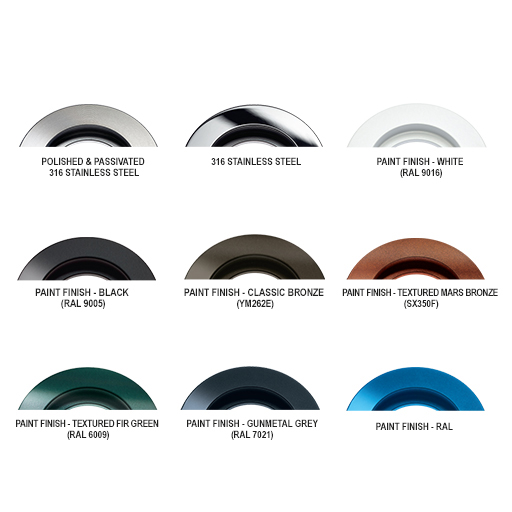

Black hard anodised aluminium body, 316 Stainless Steel bezel

IP Rating

IP67

Accessories

Honeycomb louvre, Half-moon glare shield, Oval beam glare shield

Downloads

LD154
LD154LD154DOE3N1P1-7 Datasheet
LD154
Design Pack
LD154
Photometric LDT
Files
LD154
Install Instructions
LD154
Drivers
