LD154G

Description

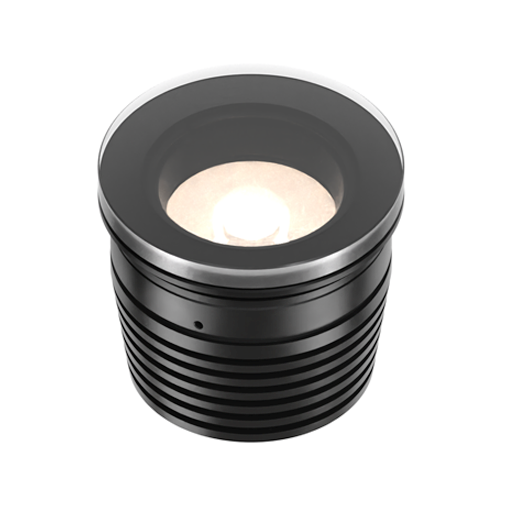

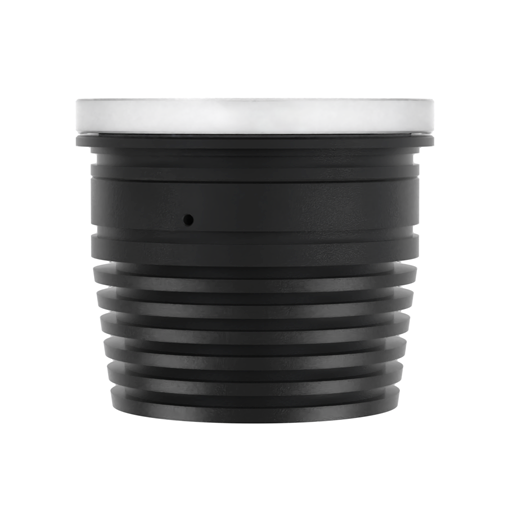

The new Trimless family is an exciting new addition to the LightGraphix product portfolio, offering lighting designers a modern aesthetic for their projects. They have been made possible by the modularisation of some of our existing fittings. The LD154G is our most powerful fitting to date, delivering up to 1443lm from a minimal body depth of 85mm beneath the seamless glass bezel. It forms our new Ultra range of highpower uplight solutions for drive over, low glare (LD154DRG) and asymmetric installations (LD154TG). There are 3 LED engine options available. Our new P1 engine delivers the highest output, whilst the E3 offers an exceptional extra narrow beam of 9° and the N1, a 13° beam. The lens assembly features large 50mm optics which offer ultra-high efficiency, superior beam quality and low glare. Reaching heights of up to 14 metres and designed with our robust glass bezel, the LD154G demonstrates an excellent size-to-output ratio, offering a discreet yet powerful exterior solution.

Applications

Recessed Uplighting, Wall Wash, Yacht Lighting, (900+ lm) Ultra range, Trimless, NEW Product

Fixing

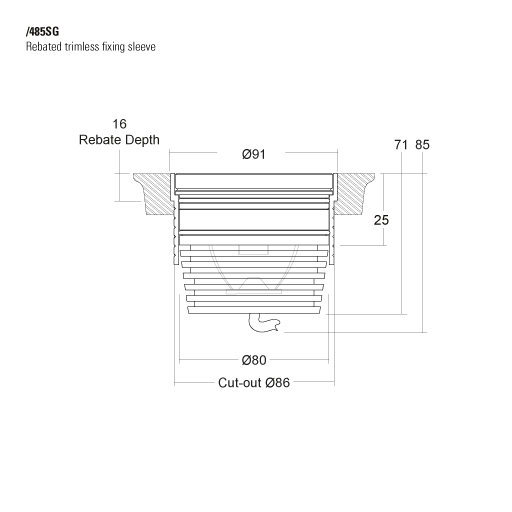

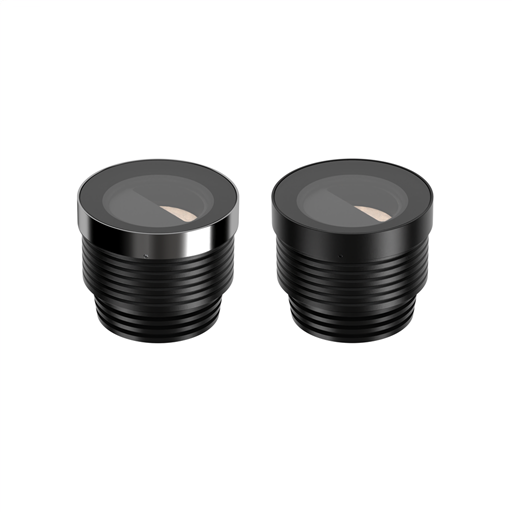

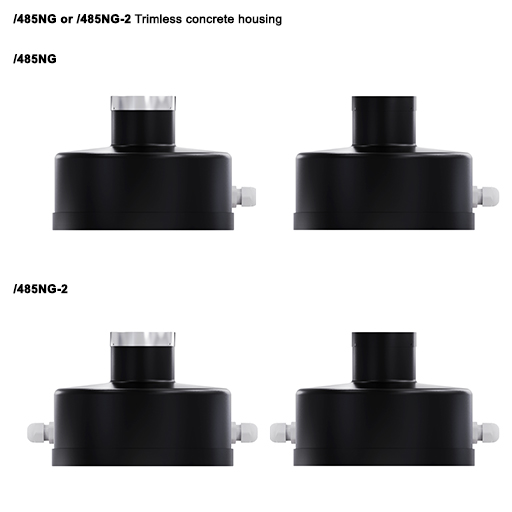

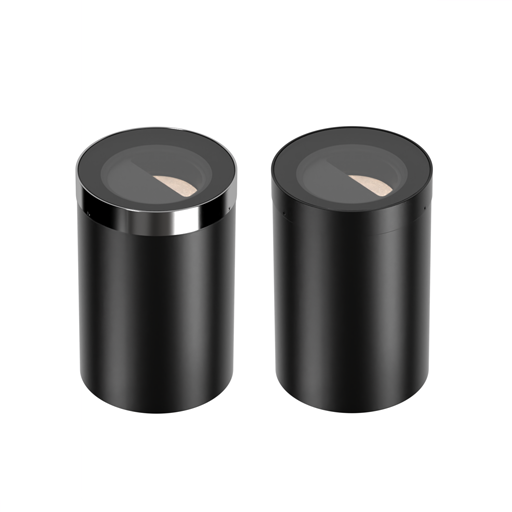

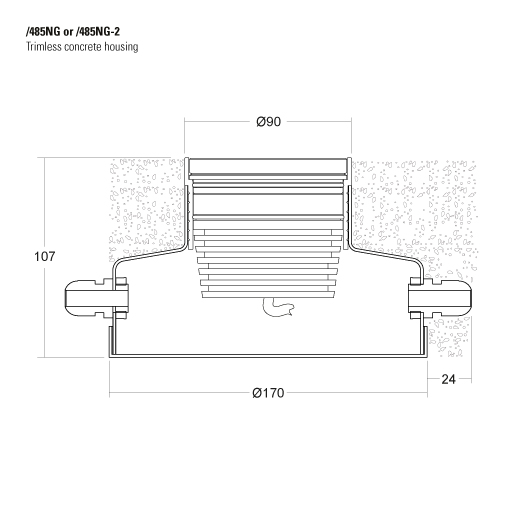

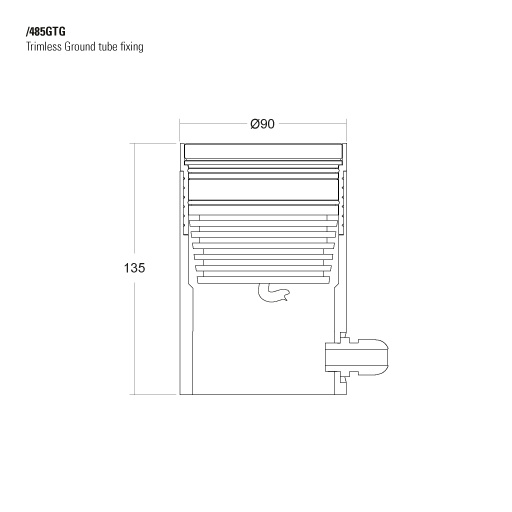

Rebated trimless fixing sleeve (/485SGs), Trimless ground tube fixing (/485GT), Trimless concrete housing with one or two glands (/485NG or /485NG-2)

LED Information

E3 LED engine - up to 10W @ 700mA
N1 LED Engine - up to 14W @ 700mA
P1 LED Engine up to 20W @ 500mA

Materials

Anodised aluminium body, glass bezel

IP Rating

IP67

Accessories

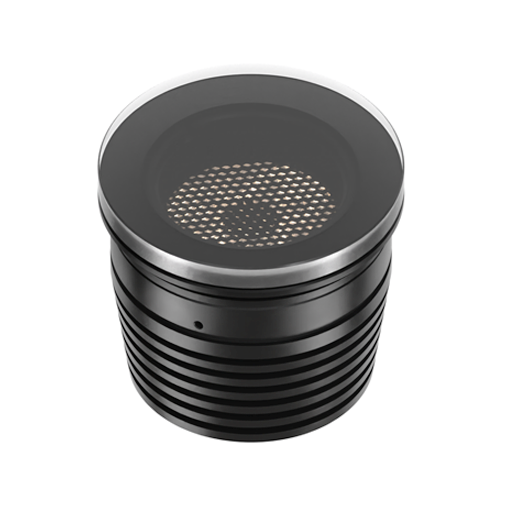

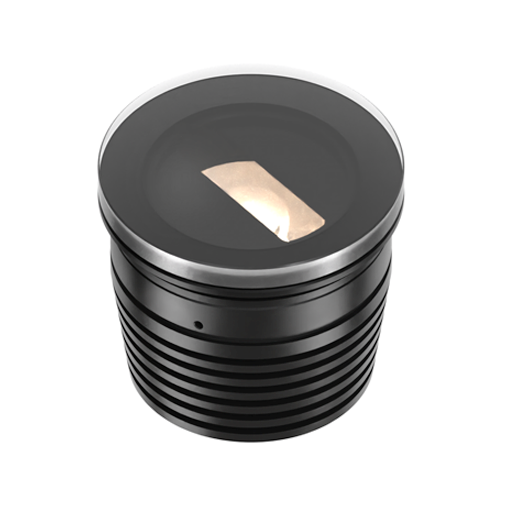

Half-moon glare shield (/GSHM154), Honeycomb louvre (/HL), Oval beam glare shield (/GSOB154)

Downloads

LD154G
LD154GE3N1P1 Datasheet
LD154G
Design Pack
LD154G
Photometric LDT
Files
LD154G
Drivers
