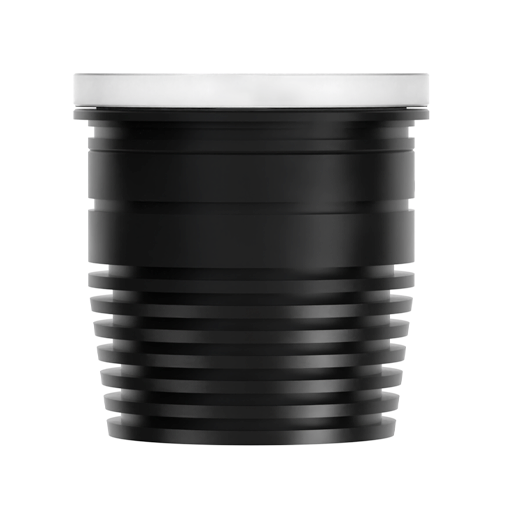

LD154DRG

Description

The new Trimless family is an exciting new addition to the LightGraphix product portfolio, offering lighting designers a modern aesthetic for their projects. They have been made possible by the modularisation of some of our existing fittings. The LD154DRG is part of our Ultra range, delivering up to 1285lm. With optics that are deep recessed 39mm into the body beneath the seamless glass top, we achieve extremely low glare. The use of large 50mm optics further aid in glare control whilst providing ultra-high efficiency and superior beam quality. There are 3 LED engine options available. Our P1 engine delivers the highest output, whilst the E3 offers an exceptional extra narrow beam of 9° and the N1, a 13° beam. Reaching heights of up to 14 metres and designed with our robust glass bezel, the LD154DRG demonstrates an excellent size-to-output ratio, offering a discreet yet powerful exterior solution.

Applications

External, Recessed Uplighting, Wall Wash, Yacht Lighting, (900+ lm) Ultra range, Trimless, NEW Product

Fixing

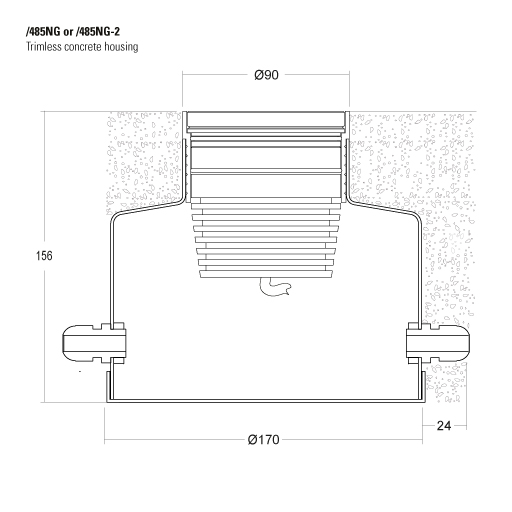

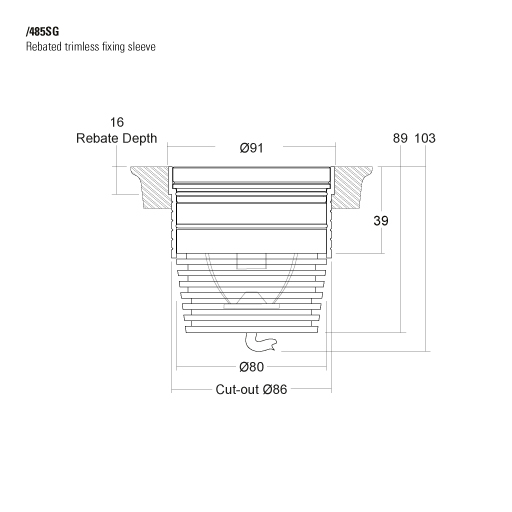

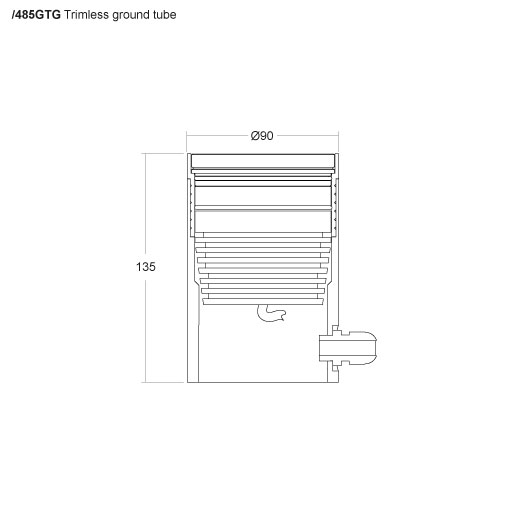

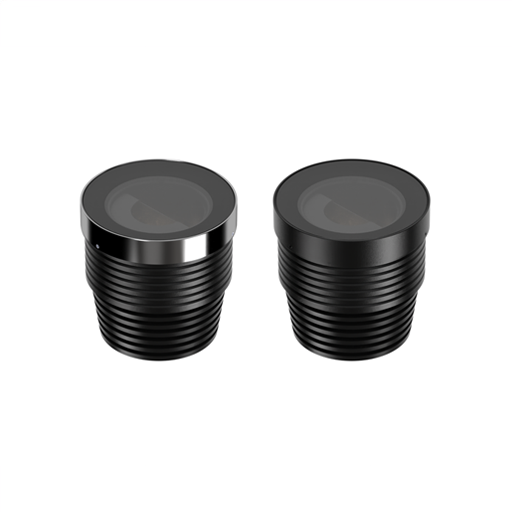

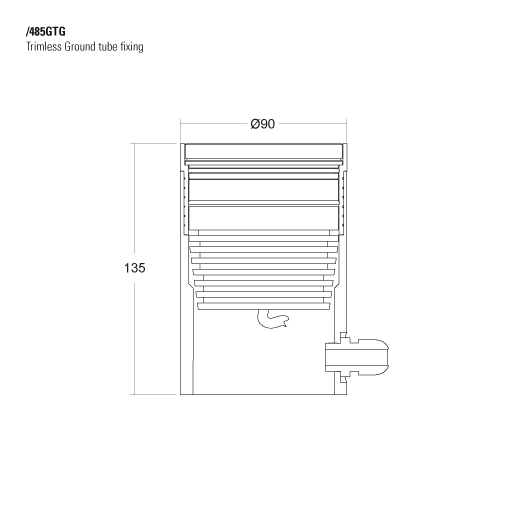

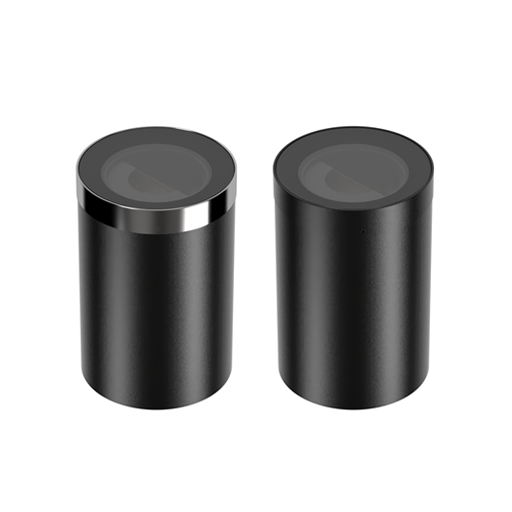

Rebated trimless fixing sleeve (/485SGs), Trimless ground tube fixing (/485GT), Trimless concrete housing with one or two glands (/485NG or /485NG-2)

LED Information

E3 LED engine - up to 10W @700mA
N1 LED Engine - up to 14W @ 700mA
P1 LED Engine up to 20W @ 500mA

Materials

Anodised aluminium body, glass bezel

IP Rating

IP67

Accessories

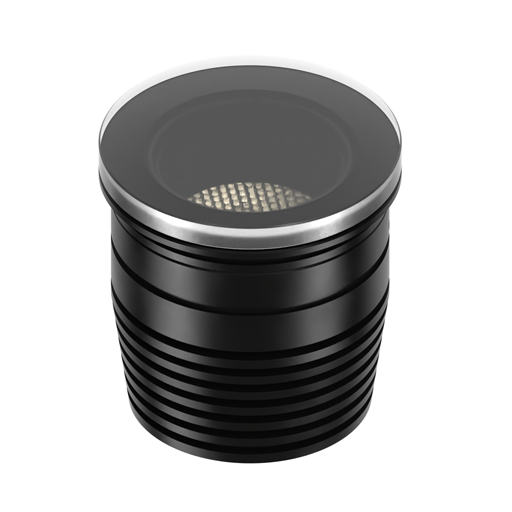

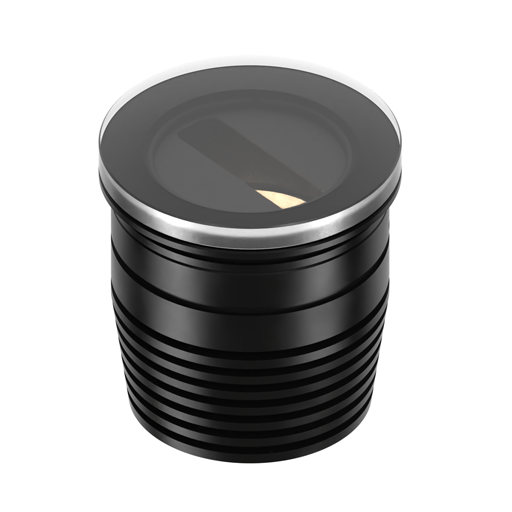

Half-moon glare shield (/GSHM154), Honeycomb louvre (/HL), Oval beam glare shield (/GSOB154)
