RLE

Description

The RLE system provides our customers with an unlimited ability to repair and upgrade LED fittings at any stage in their lifecycle, renewing them for decades, with minimal material waste as a result.

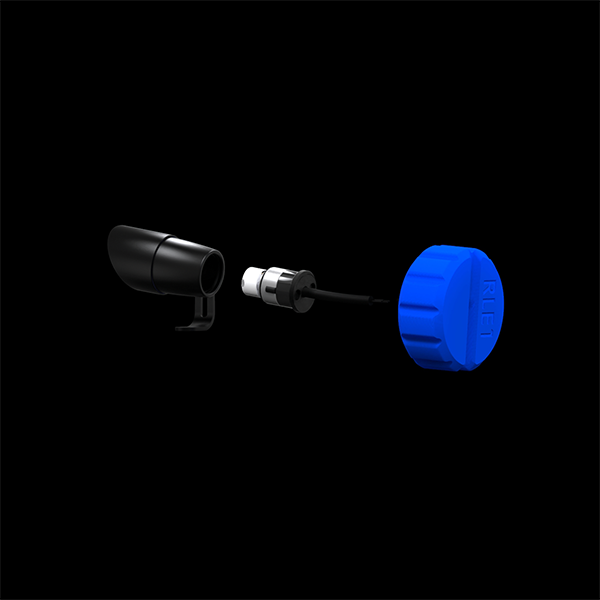

Based on a single modular LED engine insert consisting of the LED and optic, the repair or upgrade can be conducted onsite, removing the need to return the fitting to us to await repair. The LED engine insert is simply specified in a chosen configuration, ordered, and delivered to the site. Relinquished engine inserts should be returned to us for recycling.

We are the first manufacturer to implement an innovation of this kind across a miniature range of exterior products, which maintain an IP67 rating. The system has been subject to rigorous submersion, heat and environmental factor testing at our onsite facilities.

RLE system features:


  • Modular engine insert allows LED engines to be replaced/upgraded with the latest technology
  • RLE is integrated into products rated up to IP67
  • New colour temperatures and optics can be specified with the replacement engine insert
  • Easy replacement of the engines by a qualified individual onsite with a simple tool
  • Shorter lead times of RLE products as LED assemblies are now pre-built

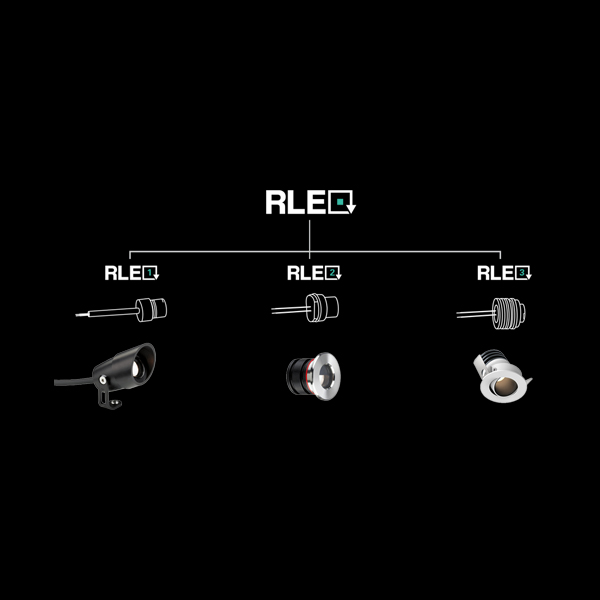

Currently, RLE is live across 18 products, this includes LD41, LD43DR, LD47, LD51, LD57, LD57SQ, LD60, LD61, LD62, LD64, LD65 (RLE1 system), LD42, LD42D, LD43 (RLE2 system) and LD71M, LD71DR, LD72M, LD72DR (RLE3 system).

The RLE system’s modular design varies between product groups which is why we have introduced numerical systems, but all LED engine inserts apply the same principles.

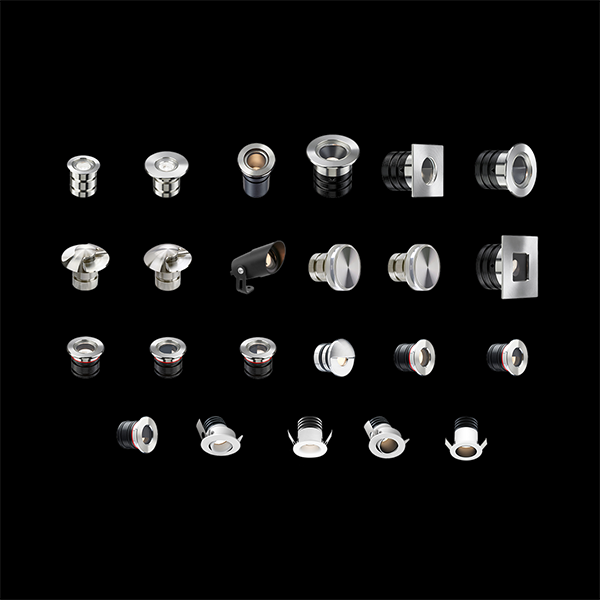

On the ‘All products’ page of our website, you will see the RLE logo on the thumbnails of products which are currently utilising the RLE system. When it is time to order a replacement engine, data sheets will feature a section advising on the product system protocol and configuration code.

When replacing engines on site, we recommend that a trained individual perform the task. It is possible for anyone to swap the modules without having any formal training, although please note that this may reduce the length of or void the warranty on the new insert. If you would like to receive training, please let us know.

If you require further information about our RLE system, please contact [email protected]


Applications

RLE - Replaceable Light Engines

Downloads

RLE
Design Pack
