NEW LD1094 IP67 high-power exterior adjustable LED downlight
1st Dec 2021

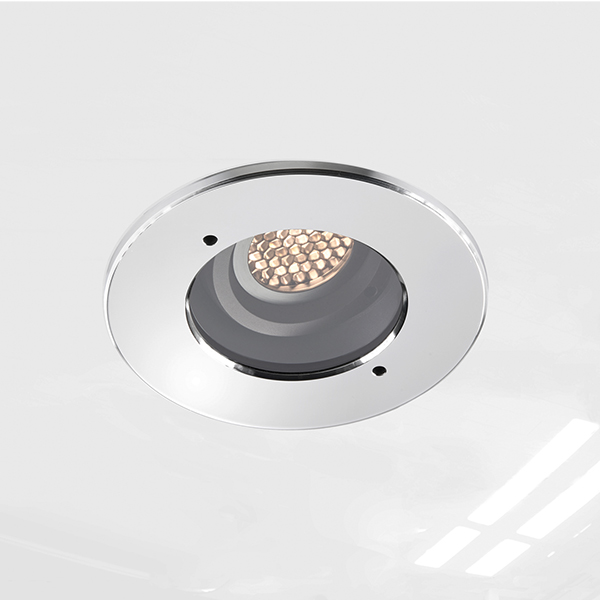

We are pleased to launch LD1094, an IP67 rated, high-power, adjustable recessed downlight for interior and exterior use.

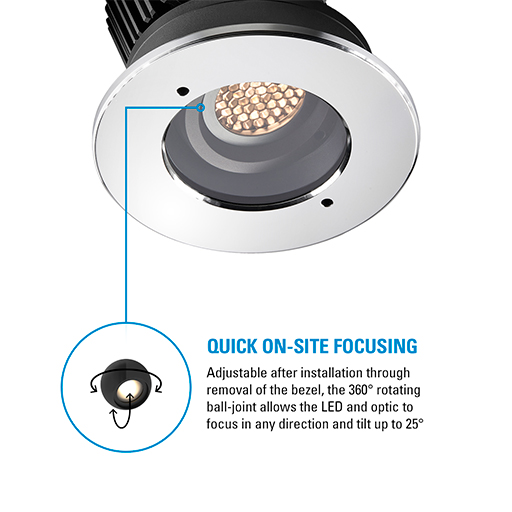

Designed around our LD155 high-power uplight, the LD1094 features an innovative 360° rotating ball joint, which houses the interchangeable optics and can be tilted up to 25°. For quick onsite focusing, the fitting can be adjusted after installation, through the removal of the bezel and the help of our 3D printed hand tool.

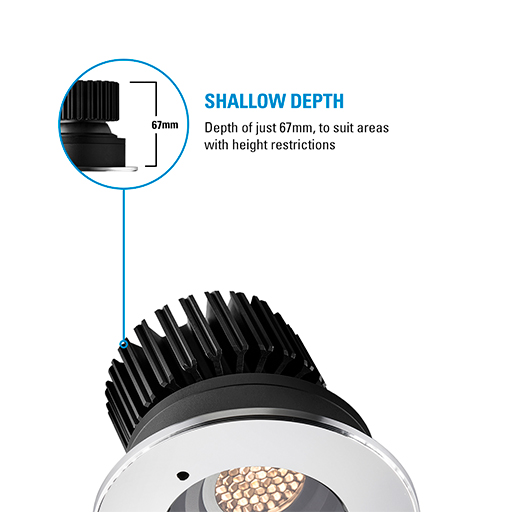

With a very shallow depth of just 67mm this product is ideal for height restricted areas and benefits from a wide range of hidden fixing options for a variety of ceiling types.

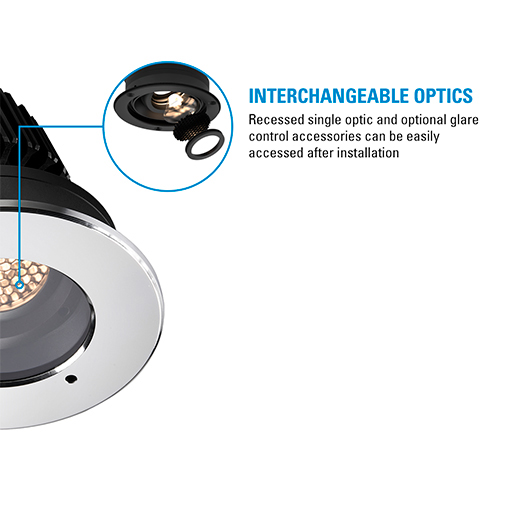

The LD1094 is available with a high-power N1 LED engine delivering over 755lms at 3000K with additional options between 2200K-5000K. Beam angles include a 28° medium spot, 35° medium, 46° wide, 65° extra wide and 22° x 43° oval beam. This is a low-glare product featuring a 25mm deep recessed optic and optional glare control accessories.

High-quality machined bezels can be specified in Polished and Passivated Stainless Steel, marine-grade 316 Stainless Steel, as well as our standard in-house paint finishes and any RAL colour. For marine applications, passivation of the bezel makes the material extra resilient against corrosive elements by forming an oxide layer after undergoing a chemical process to remove iron from the surface.

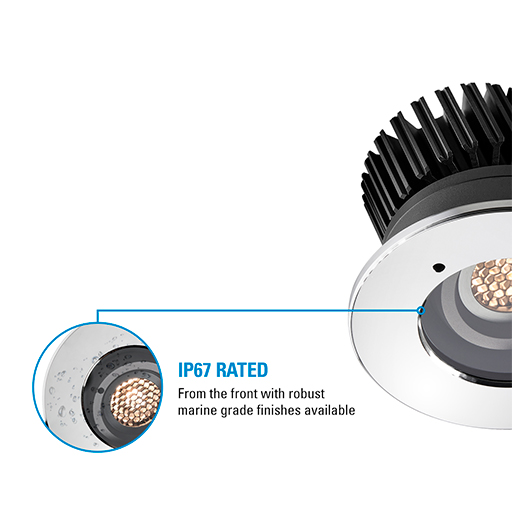

LD1094 will supersede our existing LD1220 and LD1221 downlights, with its shallower depth, refreshed aesthetic and IP67 rating from the front (IP65 from the back), making it the ideal product for withstanding the harsh elements of marine applications.

To download a datasheet, photometrics or to find out more, visit the LD1094 product page here.

If you would like to talk to one of our team about specifying this product, please get in touch with your LightGraphix contact or email [email protected]
