Introducing the LD234 Window Reveal Light
27th Feb 2025

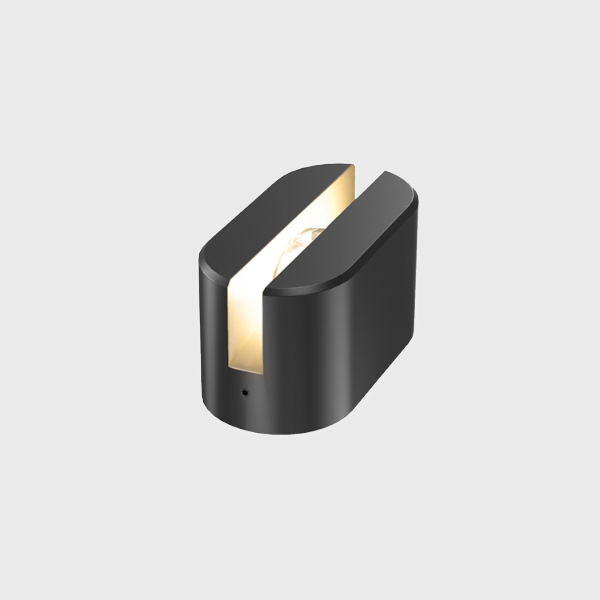

The LD234 is LightGraphix’s innovative solution for window reveal lighting, embodying our DNA in terms of glare control, superior beam quality, versatile mounting options, and adaptability. As experts in exterior façade lighting, the LD234 was designed and engineered in-house with input from architects and lighting designers. Aiming to eliminate common frustrations associated with lighting window reveals, whilst delivering unparalleled performance, functionality and design excellence.
Design Innovation
Configurable Beam Angles & Power Options
The LD234 offers three beam angles: Extra Narrow Beam (ENB) for sharp edges, Narrow Beam (NB) for a softer effect, and Medium Beam (MB) for extra diffusion. It supports multiple power options, including three constant current (350mA, 500mA, 700mA) and three 24V DC (5W, 7W, 10W) configurations. These specifiable beam angles and contractor-friendly wiring solutions, ensure lighting designers can achieve optimal illumination without compromising on performance, functionality, or style.
Colour Consistency

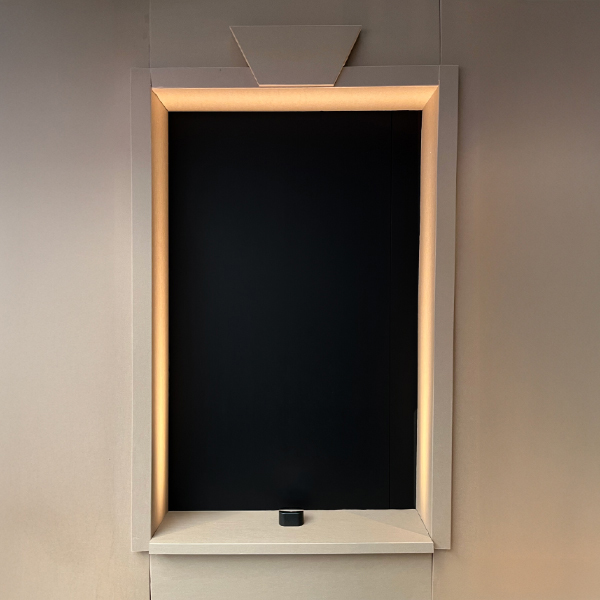

Powered by LightGraphix’s advanced E3 engine, the LD234 delivers consistent colour temperatures (2200K, 2700K, 3000K, 4000K, and 5000K), aligning with other LightGraphix luminaires like the LD154 Uplights and LD238 Spotlights. Its in-house developed Dual Optic system produces an impressive 140 lumens and a greater than 180º visible beam spread, minimising glare and enhancing visual comfort within rooms and surrounding buildings.
Durability Meets Sustainable Design
Precision-engineered from high-quality machined aluminium, the LD234 features an inclined internal profile for water runoff and is available in a variety of finishes to suit any surrounding, boasting an IP65 and IK08 rating for reliable installation. Manufactured in the UK by LightGraphix this product is part of our R+R scheme, offering customers the opportunity to return products for repair and refurbishment, extending their lifespan and reducing waste.
Unique Mounting Solutions

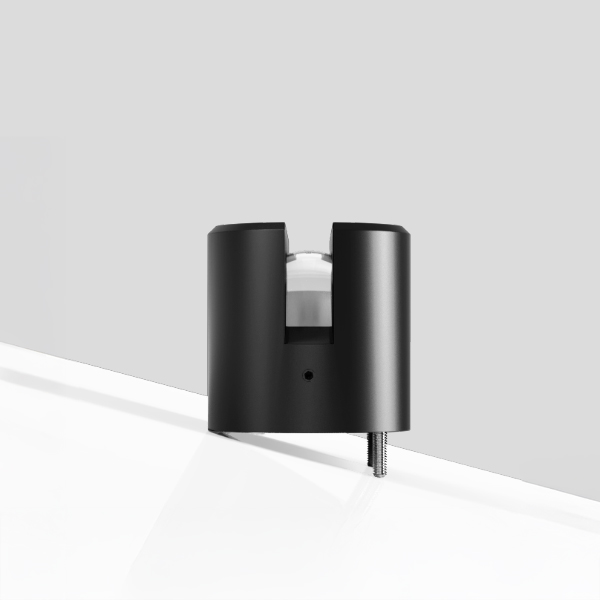

The LD234’s modularity and flexibility include several mounting options for various installation needs. The standard fixing simplifies installation with integrated tilt screws, offering adjustability to accommodate for imperfections in the mounting surface, and for sill angles up to 16º. Additional mounting options include:

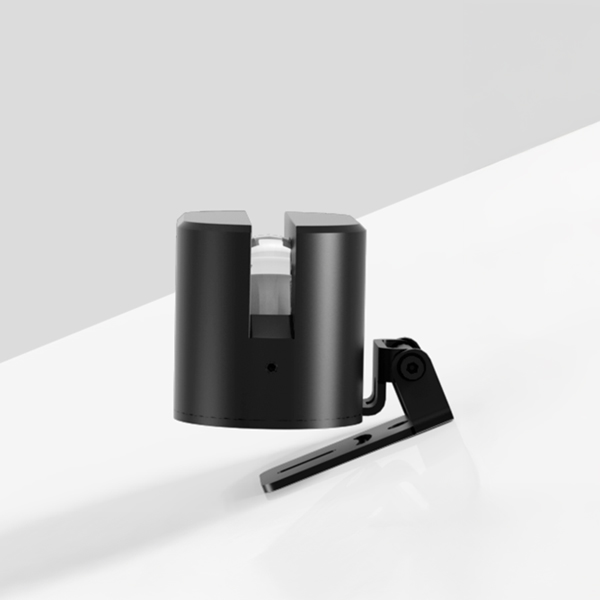

Adjustable Bracket Mount (ABM): For windowsills exceeding 16º angles.

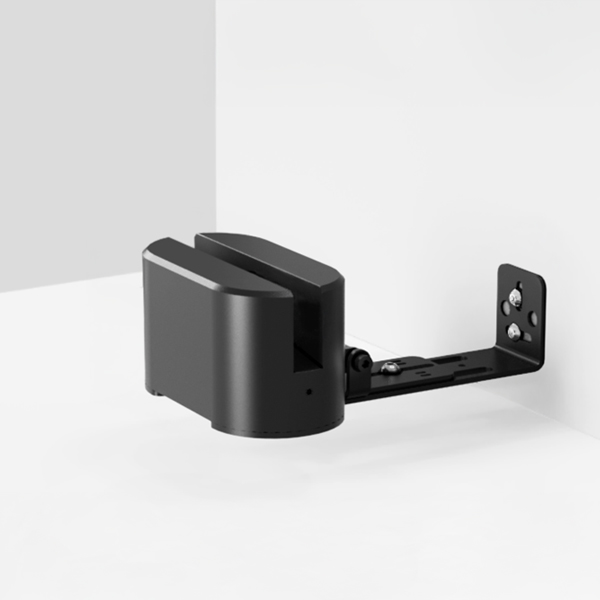

Adjustable Wall Bracket (AWB): For mounting in varying depths of window reveals or on vertical surfaces like window frames.

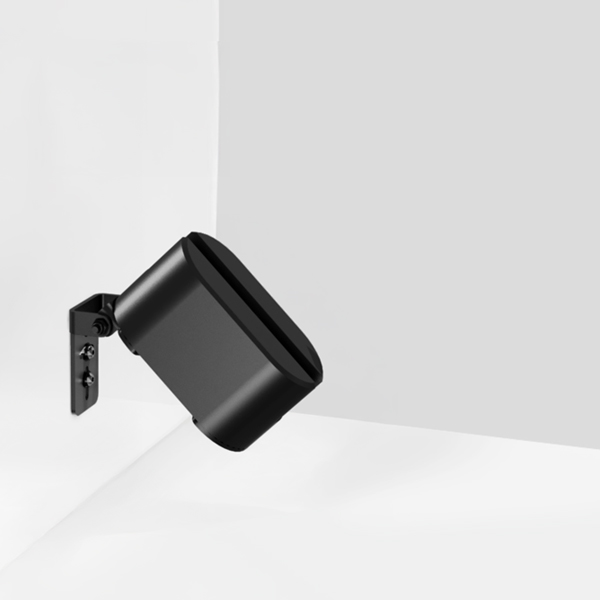

Adjustable Corner Mount (ACM): For projects that require corner fitting, allowing it to be mounted on a vertical or horizontal surface.
Simplified Installation
The LD234’s flat-top design aids in setting and recording installation angles, ensuring consistency across a project. This design feature enables on-site contractors to replicate installation angles determined by lighting designers, minimising the need for re-focusing, reducing site revisits, and accelerating project timelines.

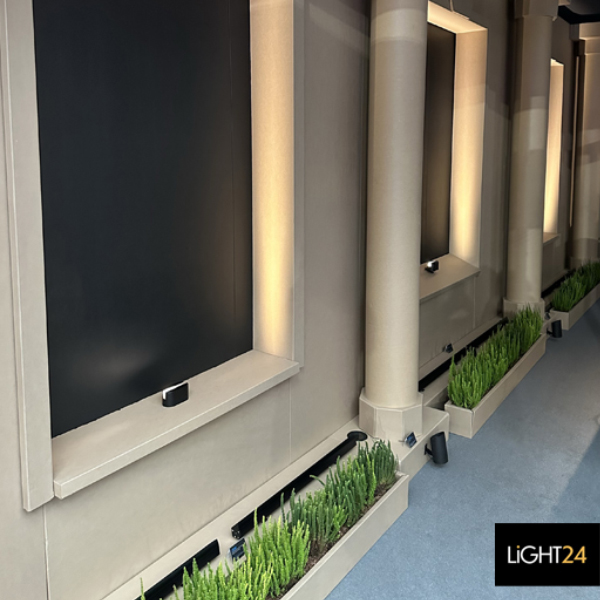

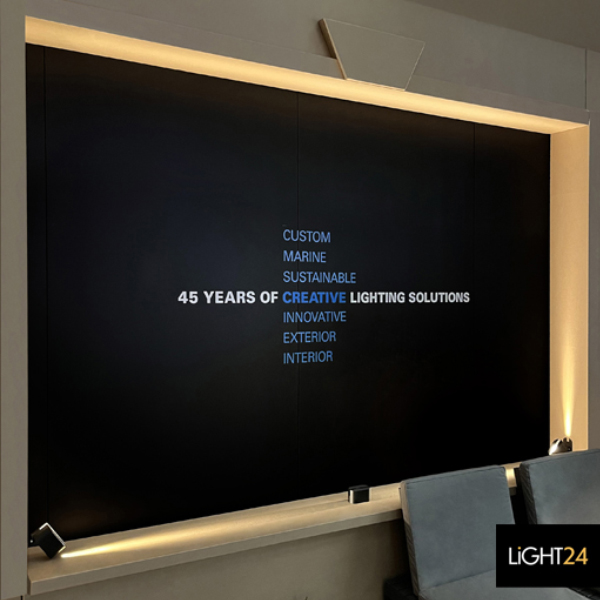

Since its debut at the London Light24 Expo in November 2024, the LD234 has been featured in arc Magazine (Issues 143 & 144) and highlighted in Kevin Grant’s COOLKITLIST. It exemplifies LightGraphix’s commitment to innovation, sustainability, and excellence by combining outstanding performance, refined aesthetics, and practical installation to reimagine window reveal lighting.
