New compact range additions: introducing LD238, LD233, LD141X, LD141Y, LD141DR
25th Apr 2023
Watch our video below.
The compact range has been designed with the knowledge and expertise that we have gained from the success of our high-power products. This has allowed us to integrate the same technology, LED engines and features into more compact sized fittings capable of impressive outputs.

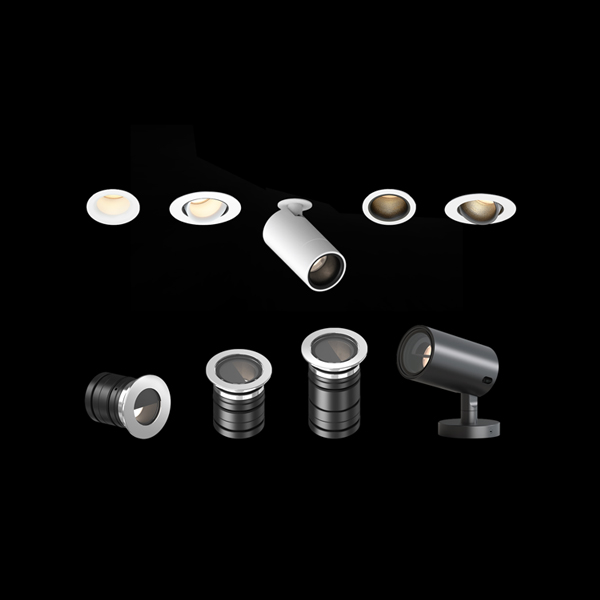

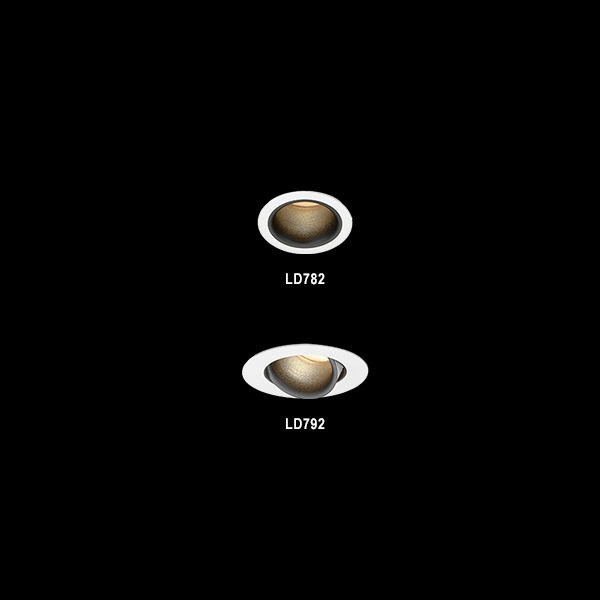

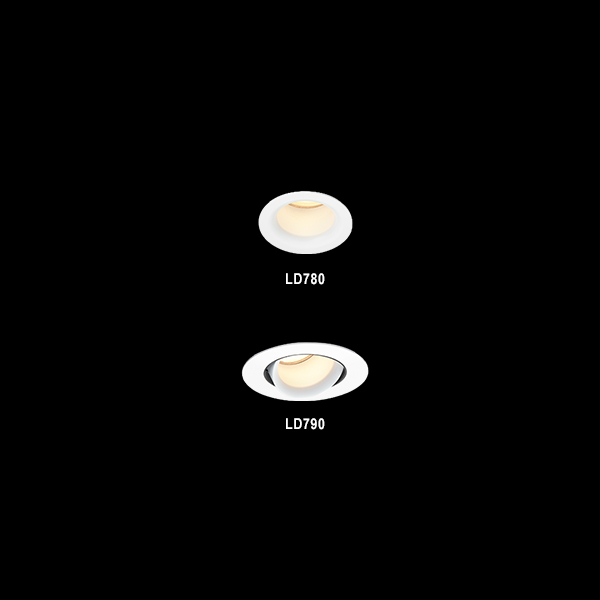

These exciting new additions will join our existing compact downlights (LD780, LD782, LD790, LD792) and include new spotlights (LD233 & LD238), uplights (LD141X & LD141DR) and a wall light (LD141Y), delivering between 400lm-600lm.
Designers will be able to specify E3 and F1 LED engines, the same found in products like our high-power LD10238 and LD151 which belong to our Compact+ range. The Compact range will bridge the gap between our Miniature range (50lm-200lm) and Compact+ range (600lm-900lm).
With the launch of the new additions, we introduce our first track-mounted fixing option for the LD233 interior spotlight. This and the LD238 also become the first spotlights in our product range to feature glare shields and honeycomb louvres.

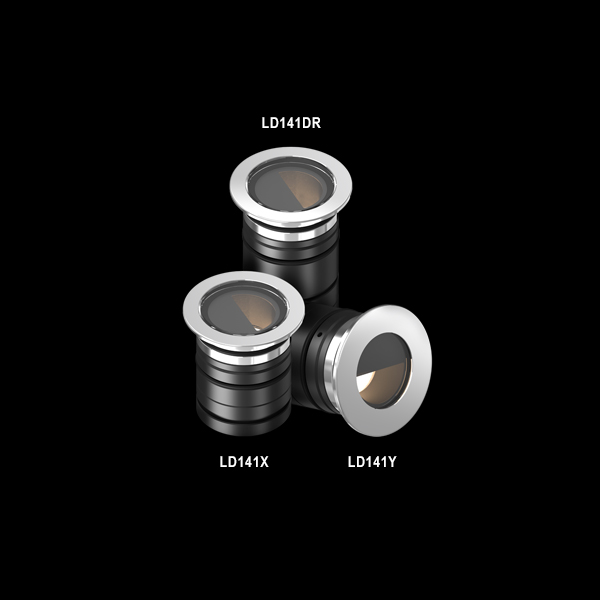

The LD141 family has been designed with a modular approach, all three products using the same body but for applications requiring a deep recess, an additional base elongating the lens assembly can be applied. For wall light applications an alternative bezel with glass secured from behind and no glue line is supplied, allowing for a slightly smaller aperture and more pleasing aesthetic.
This modular approach makes products highly configurable and the LED engine easily accessible for engine upgrades and repairs under our ‘Repair + Refurbish’ scheme. Repairable engines have been integrated across the compact range.
Key features summary:

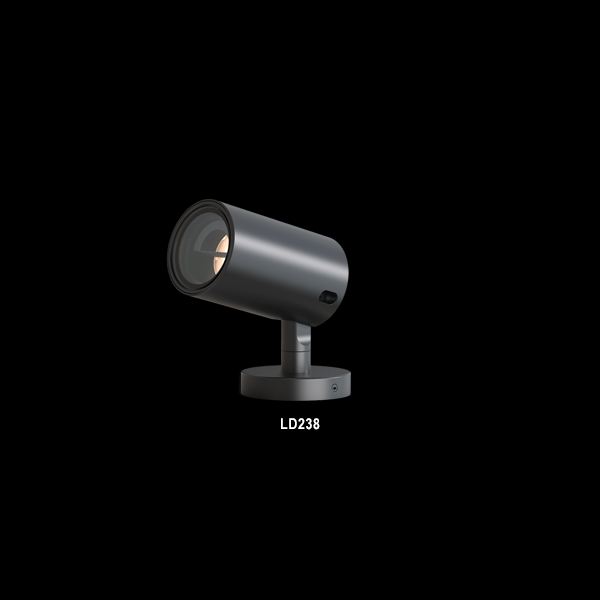

LD238 – Exterior spotlight
- IP67 rated
- 597lm delivered lumens (max)
- Range of beam angles including 12°, 18°, 31°, 55°, 14° x 48°
- No cowl, half cowl, full cowl option
- Half-moon glare shield & honeycomb louvre accessory
- Adjustable & lockable head
- Extensive range of fixing options
- Unlimited paint finish options

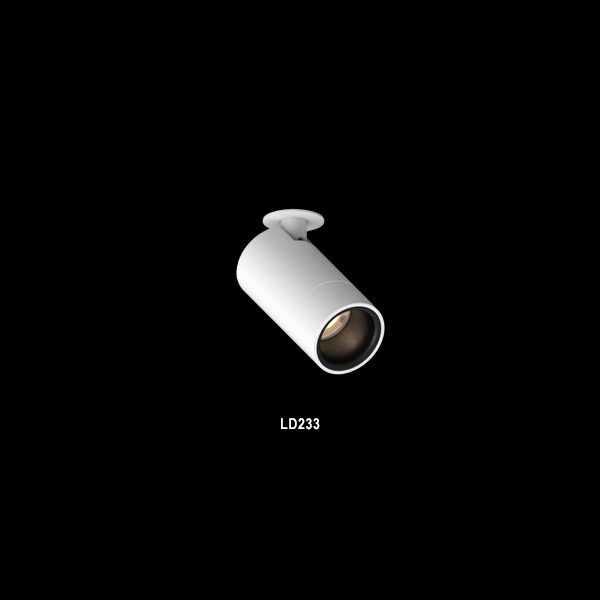

LD233- Interior spotlight
- IP40 rated
- 535lm delivered lumens (max)
- Range of beam angles including 12°, 19°, 34°, 54°, 15° x 49°
- No cowl or full cowl option
- Honeycomb louvre accessory
- Adjustable head
- Track mounted fixing option, SMB and PL1
- Unlimited paint finish options and customisable inner baffle
LD141X/Y – Exterior uplight/wall light
- IP67 rated
- Uplight (LD141X) or wall light (LD141Y)
- 462lm delivered lumens (max)
- Range of beam angles including 12°, 19°, 34°, 54°, 15° x 49°
- Asymmetric beam option
- Half-moon glare shield & honeycomb louvre accessory
- Spring clips, first fix sleeve, ground tube and concrete housing mounting methods
- Wide range of machined and painted finishes
LD141DR – Deep recessed exterior uplight
- IP67 rated
- Modular adaption of the LD141X
- Optics deep recessed 53mm for super low glare
- 440lm delivered lumens (max)
- 12°, 19° and 25° beam angles
- Half-moon glare shield & honeycomb louvre accessory
- Ideal for columns and narrow uplighting applications
- Spring clips, first fix sleeve, ground tube and concrete housing mounting methods
- Wide range of machined and painted finishes
Product pages and full technical data sheets are now available on our website. If you would like to request a sample of the above or have any questions, please contact [email protected] or your LightGraphix contact. In the meantime, discover more about the compact range in our video above.
